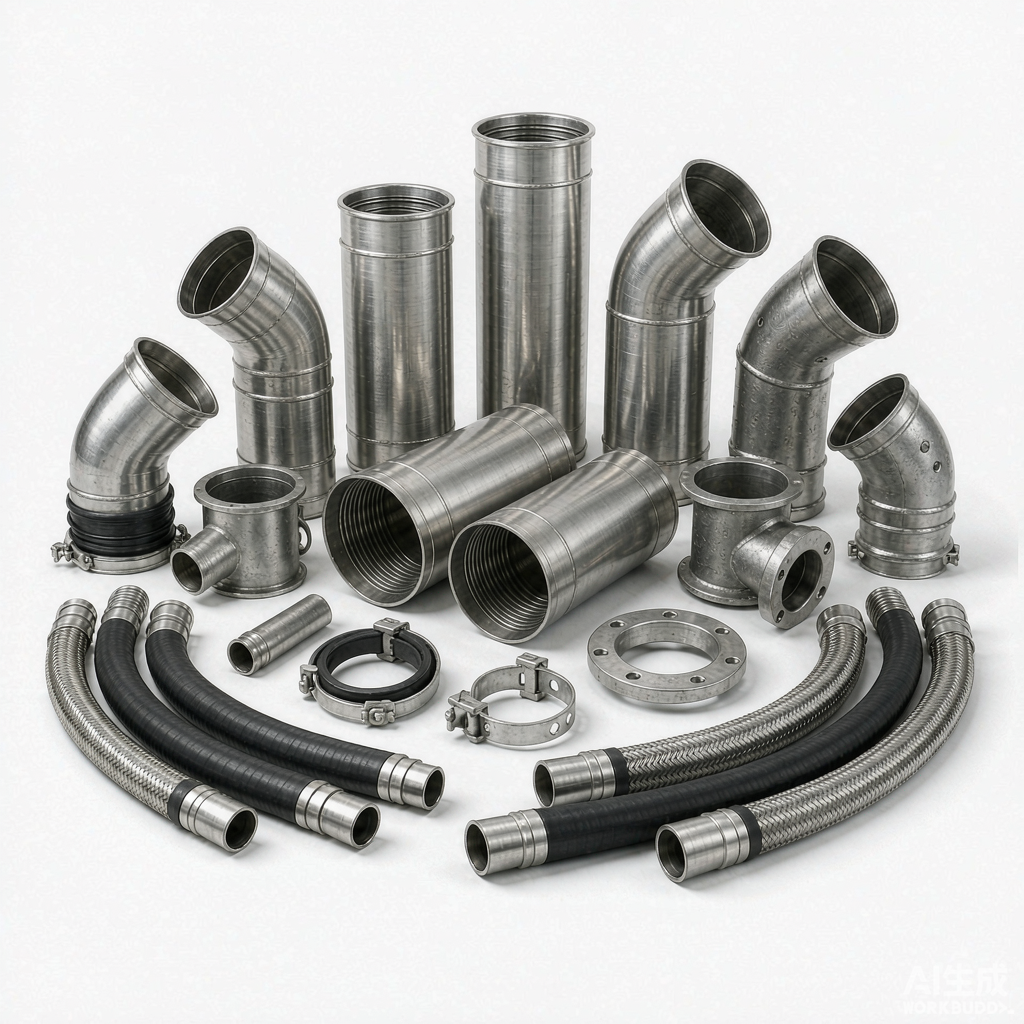

CONCRETE PUMP PIPE FITTINGS & SPARE PARTS
Concrete Pump Delivery Pipes, Elbows, Reducers, Clamps & Full-Line Spare Parts
OEM-grade twin-wall and single-layer delivery pipes, double-layer elbows, reducers, 5K/HD/ZX/MF trailer-pump flanges, clamps and couplings, fabric and steel-wire braid hoses, plus complete spare parts for Putzmeister, Schwing, SANY, Zoomlion and XCMG concrete pump trucks and trailer pumps. Three quality tiers available: Genuine OEM, OEM-Grade Replacement (CR28 / NM600 / 55MN wear-resistant systems), and Aftermarket-Grade wear parts.
OEM-GRADE REPLACEMENT
HEAVY-DUTY WEAR-RESISTANT
AFTERMARKET WEAR PARTS
HEAVY-DUTY WEAR-RESISTANT
AFTERMARKET WEAR PARTS

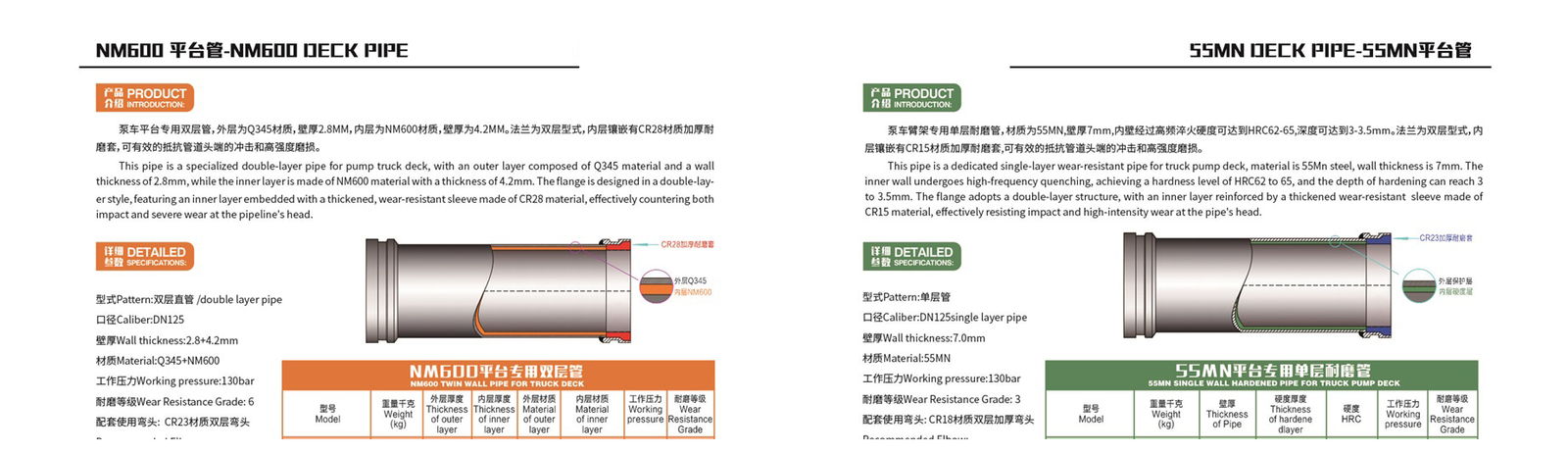

Twin-Wall Delivery Pipes — NM600 & 55MN Deck Pipe (Product Card from catalogue)
11
Product Categories
500+
Part Specifications
5
OEM Platforms Covered
50+
Export Countries
Product Range Overview
Eleven core product categories cover the full concrete-pumping delivery chain — from hopper to boom tip and trailer-pump outlet, plus complete spare parts for the five major OEM platforms operating across Africa, the Middle East, Southeast Asia and Latin America.
| # | Category | Typical Components |
|---|---|---|
| A | Double-layer delivery pipes | CR28 platform pipe, NM600 platform pipe, NM600 boom pipe, CR28+CR15 double-layer reducer, CR15 double-layer reducer, CR28 double-layer reducer, CR23 double-layer reducer |
| B | Single-layer delivery pipes & reducers | 55MN single-layer pipe (7mm), 55MN heat-treated pipe (HRC62-65), 37MN5 reducer pipe (9mm), CR15 small reducer (6mm), ST52 single-layer pipe, carburized reducer pipe, standard reducer pipe |
| C | Trailer-pump straight pipes | 5K flange pipe, HD flange pipe, ZX flange pipe, MF flange pipe — DN100 to DN125, working pressure 130 to 200 bar, materials ST52 / Q235 / 37MN5 |
| D | Double-layer elbows (90 / 45 / 30 / 20 / 10 deg.) | CR28 elbow (wear grade 13), CR23 elbow (grade 10), CR18 elbow (grade 6), CR15 elbow (grade 6) — R1000 / R600 / R300 radius options |
| E | Cast-steel elbows (NM13 material) | PM No.1 / No.2, ZOOMLION No.1 / No.2, SANY No.1 / No.2, XCMG No.1 / No.2, LOXA No.1 / No.2 — 90 to 15 degree |
| F | Trailer-pump bends & fittings | 2-inch, 2.5-inch, 3-inch and 4-inch 5K bends at 90 deg. and 45 deg.; twin-wall elbow, twin-wall pipe, twin-wall reducer, twin collar, manual shut-off valve, Y-tee, swing-leg pipe bracket |
| G | Clamps, couplings & collars | Snap coupling, bolt coupling, two-bolt coupling, four-bolt coupling, HD snap / HD adjustable / HD wedge / HD bolt-MT / HD U / HD double-bolt, ZX125 bolt-plate, wedge coupling, pipe seat, rubber-hose pipe seat — 5-inch and 6-inch |
| H | Rubber hoses, hose ends & shotcrete nozzles | Metric hose ends (2 to 6 inch), HD hose ends (2 to 5 inch), GR hose ends, hose tail and ferrule, fabric braid hose, steel-wire braid hose, shotcrete nozzle 1.5HD / 2.0HD / 2.5HD |
| I | Concrete-pump spare parts by OEM | Putzmeister, Schwing, SANY, Zoomlion and XCMG complete ranges — S valve, rock valve, wear plate, cutting ring, thrust ring, spectacle plate, wear sleeve, intermediate ring, plunger cylinder, upper housing, bearing flange, mixer shaft, slewing lever, mixing paddle, hopper door, hydraulic motor, hydraulic pump, solenoid valve, seal kit |
| J | Mixer-truck gear reducers & hydraulic pumps | P3301, P4300/5300, P7300, PLM-7/9, CML12/14/16, 6.0 / 6.5 / 7.1, 7.5 / 7.8 / 9V, 577/580, 51.2 / 61.2 / 71.2, DD33, P68/75, P80/92, MAXI 6 to 8 m³, SANY 8 to 15 m³, XCMG 9 m³, STETTER 9 to 12 m³, FOTON 12 m³, QDT 12 to 16 m³ |
| K | Hydraulic-pump series (mixer truck & pump truck) | Rexroth A2FO56 / A10VO28 / A4FO28, Sauer SPV & SMF, Sauer 90 series, Eaton series, L2F12R4P4 — open and closed circuit |
Double-Layer Delivery Pipe Specifications

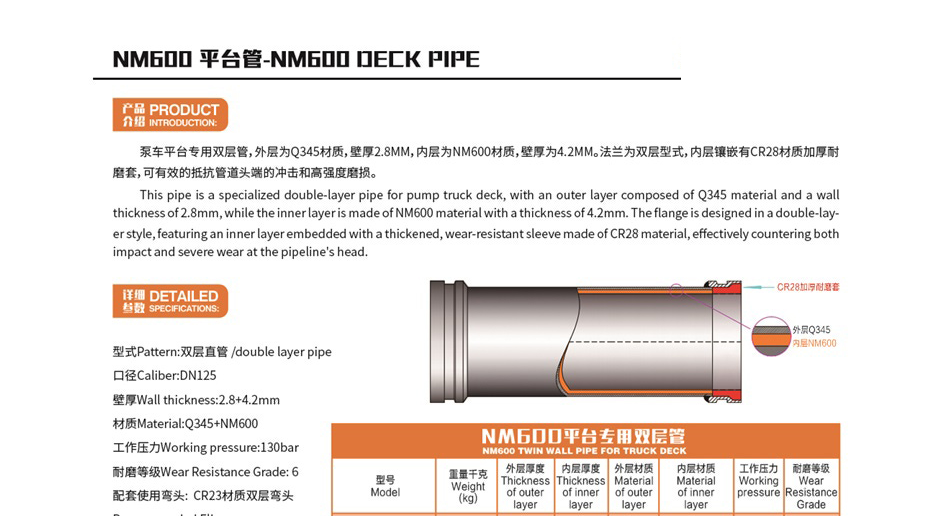

NM600 Twin-Wall Deck Pipe (DN125 / 130 bar) — Product Card
Twin-wall construction combines an outer load-bearing pipe (Q345 or ST52) with an inner wear-resistant sleeve (CR28 / CR23 / CR15 / NM600) inserted into the pipe head. This configuration resists the impact and high-intensity wear of fresh concrete far better than single-layer pipe, multiplying service life by 3 to 5 times in high-output truck-mounted pumps.
| Outer Diameter | Outer Material | Outer Wall Thickness | Inner Material | Inner Wall Thickness | Working Pressure | Wear Grade |
|---|---|---|---|---|---|---|
| DN125 / 5 inch | Q345 | 3.0 mm | CR28 | 5.0 mm + 4 mm sleeve | 130 bar | 13 |
| DN125 / 5 inch | Q345 | 2.8 mm | NM600 | 4.2 mm | 130 bar | 6 |
| DN125 / 5 inch | Q345 | 2.0 to 3.0 mm | NM600 (boom) | 3.5 to 3.0 mm | 85 bar | 6 |
| DN125 to 100 (reducer) | ST52 | 4.0 mm | CR23 | 8.0 mm | 30 bar | 10 |
| DN150 to 125 (reducer) | ST52 | 4.0 mm | CR28 | 8.0 mm | 130 bar | 13 |
| DN150 to 125 (reducer) | ST52 | 4.0 mm | CR15 | 8.0 mm | 130 bar | 6 |
| DN125 to 100 (reducer) | ST52 | 4.0 mm | CR28 + CR15 | 8 mm + 3 mm | 130 bar | 8 |
| DN125 (single layer) | 55MN (heat-treated) | 4.5 to 5.0 mm | HRC 62 to 65 | — | 85 bar | 3 |
Double-Layer Elbow & Cast-Steel Elbow Family

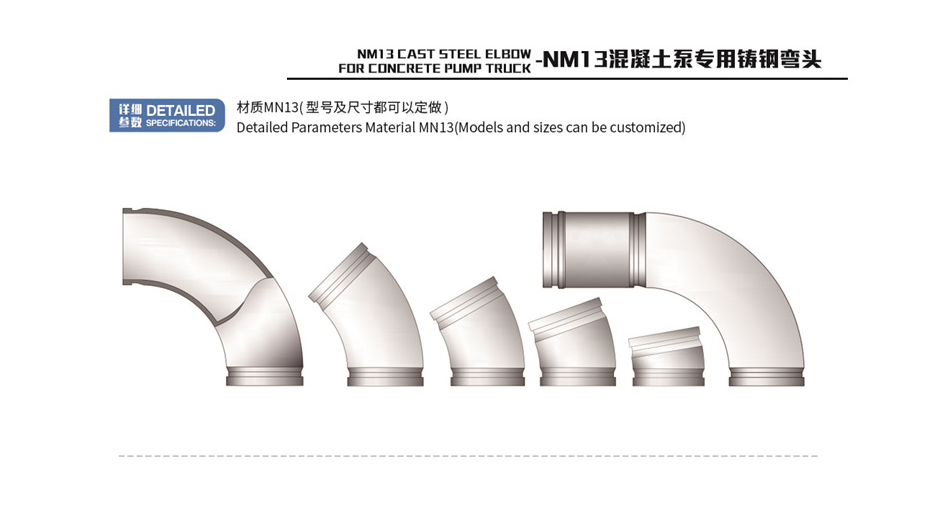

NM13 Cast-Steel Elbow Family — Product Card
Elbows take the highest wear in any concrete-pump delivery system because the concrete stream changes direction against the inner wall. Choose the right wear grade to match your daily output and aggregate hardness.
| Series | Angles | Inner Layer | Outer Layer | Wear Grade | Recommended For |
|---|---|---|---|---|---|
| CR28 elbow (MTWCR28E) | 10 / 20 / 30 / 45 / 90 deg. | CR28 | ST52 | 13 | High-output truck-mounted pumps, high-abrasion aggregates |
| CR23 elbow (MTWCR23E) | 10 / 20 / 30 / 45 / 90 deg. | CR23 | ST52 | 6 | Heavy-duty twin-wall reducers, mixed aggregate |
| CR18 elbow (MTWCR18E) | 10 / 20 / 30 / 45 / 90 deg. | CR18 | ST52 | 3 | Standard twin-wall elbows, general construction |
| CR15 elbow (MTWCR15E) | 10 / 20 / 30 / 45 / 90 deg. | CR15 | Q235 | 3 | Cost-efficient replacement, light to medium wear |
| Cast-steel elbow (NM13) | 15 to 90 deg. | NM13 cast steel | — | — | PM / ZOOMLION / SANY / XCMG / LOXA direct fit, no adapter |
OEM Platform Compatibility

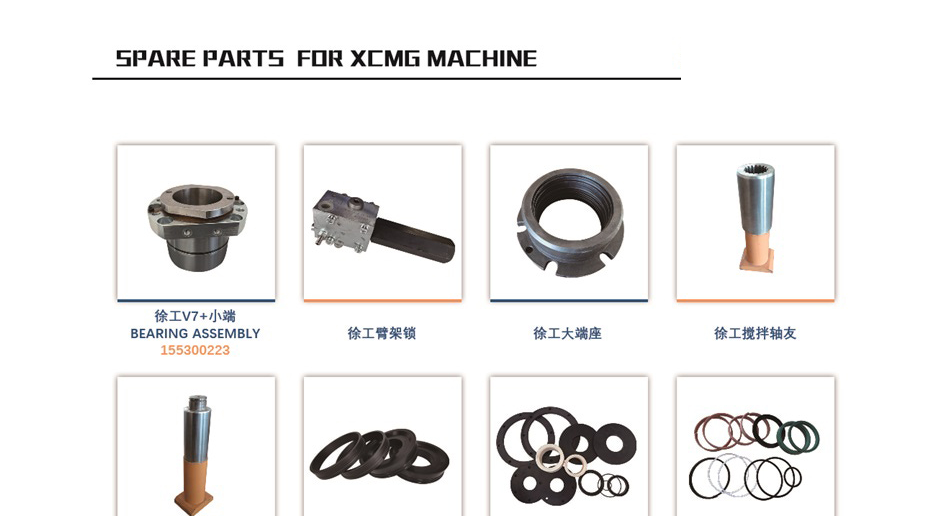

OEM Spare Parts for XCMG Concrete Pump Truck — Product Card
Cross-reference by machine model, OEM part number, or send us a photo. We match the right part to your pump without requiring an adapter or modification.
| OEM Brand | Typical Spare Parts Supplied |
|---|---|
| Putzmeister | S valve (251013008), thrust ring (240390004), wear sleeve (228383004), upper housing (401783 / 519127), bearing flange (242573007), cylinder plunger (541868), plunger cylinder (462244), mixer shaft (278096009), slewing lever (274877001), mixing left (441540 to 441541), spectacle plate (228488005 / 261122002), cutting ring (258486007 / 261123001), bottom hopper door (242334000), bushing (222484006), palsitic ball cup (275694005), switch fork (284846003), torque support (258034006), cooling fan (221022759), delivery piston (262893000), rubber disc (242574006), HYD motor (258130001), filter element (222859006 / 273827007 / 594896), seal kit (445760 / 240391003 / 80 to 140 / 471710), distributor casing (462285), solenoid valve (24V / 12V), intermediate ring (269330009), proximity switch (276021001), plunger pump A2FO56 / A10VO28 / A4FO28, water pump, valve cartridge, bladder, big elephant battery, seal set for plunger cylinder (262804008) |
| Schwing | Rock valve (10011790), housing lining (100118046), spectacle plate (10129809), base plate (10074769), spectacle plate (10074768 / 10181838), cutting ring (10165890), agitator bearing (10061072 / 10061073), intermediate ring (269330009), proximity switch (276021001), bottom hopper door (10080762), slewing lever (10010071), slewing pivot (10118218), transition piece (10077886), connection piece (10187193), rollstering pump, HYD motor (10039180), flange shaft (10061075 / 10061080), flange bushing (10061082), brass bushing (10018047), bearing bush (10018037), sealing ring (10035783), support (10018035), piston ram (10161754), kidney seal (10029138), service kit (10170884), seal (10181817), filter element (10189960 / 20394219 / 10002909), wedge (10004709), piston rod flange 75 mm (10011649), fan 24V D385 (10195217), fan (10190119), schwing elbow 14D (10026159), cast elbow 1# / 2# (10211850 / 10181835 / 10007387), sealing cover (10018035), delivery cylinder (180X200X1520 / 200X219X1573 / 200X219X2125), blade, assy-valve-hyd-cartridge SVP-10 (10067788), cylinder-sealing D110-85 (10023852), valve-hyd pressure relief CVA-10-S (10140348), valve-hyd solenoid 24V (10181514) |
| SANY | S valve, spectacle plate (DN230 / DN260), cutting ring (DN230 / DN260), wear sleeve (210-190-153 / 10527502), intermediate ring, plunger cylinder, upper housing, brass bushing, bearing for SANY, rubber piston, bearing flange, hydraulic pump, HYD motor, slewing lever, seal kit, seal set for plunger cylinder, seal kit for outer housing |
| Zoomlion | S valve (L2F12R4P4), delivery cylinder, outr housing, mixing bearing support (001690481A000011), smixer shaft (001690481B010003), slewing lever, upper housing, plunger cylinder 60-90, spectacle plate, cutting ring 260, ball cup 70×41, mixing paddle, switch fork, piston ram, rubber piston, PU piston, seal set for upper housing, seal set for outer housing, seal set |
| XCMG | O-ring 195-5.3 (803184568), 260 round ring, R-cheked adhesive strip inner diameter (155302083), T-allow idney-shaped ring (150001173), assembly of rear bearing (155300219), assembly of right flange (155302471), coil 24V solenoid valve, concrete seal body Φ230 (155302083), elastic seal ring (150003969), filter element (803437280 / 803108821), kidney-shaped sealing ring (150003176), outlet wear sleeve (155300568), supporting ring (155300459), TCS-CEX-L-II battery of remote controller (860553168), V7 (100-70) oil cylinder, TV7+ small cylinder bearing assembly (135300023), back-tightening nut, large end cap, swing rod shaft sleeve, swing rod bearing, rubber piston DN230, seal set, mixer-truck series (180-120-60, 217-121-55, 200-110-100, 250-130-90, 250-160-110, 250-130-120, 250-170-120, 280-110-90, 280-160-90, 280-160-110, 280-120-90) |
| Trailer-pump flanges | 5K flange, HD flange, ZX flange, MF flange — DN100 to DN125 — ST52 / Q235 / 37MN5 — 130 to 200 bar |
Material & Heat-Treatment Technology

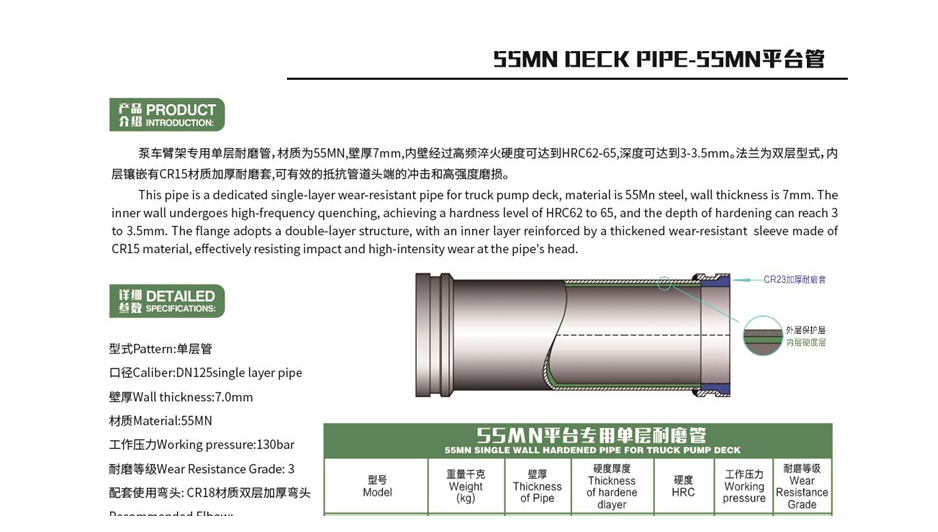

55MN Single-Wall Hardened Pipe (HRC 62-65) — Product Card
The wear grade of a concrete-pump delivery pipe is decided by three variables: inner-layer material chemistry, inner-layer wall thickness, and the heat-treatment process applied to the inner sleeve. We control all three to match the wear grade your application requires.
| Inner-Layer Material | Hardness Range | Wear Grade | Recommended Use |
|---|---|---|---|
| CR28 | ≥ 60 HRC | 13 | Pumping platform of high-output truck-mounted pumps, most demanding wear point |
| CR23 | 58 to 62 HRC | 10 | Twin-wall reducers, heavy-duty bends |
| CR18 | 56 to 60 HRC | 6 | Standard double-layer elbows |
| CR15 | 56 to 60 HRC | 6 | Small-bore twin-wall pipe, cost-efficient replacement |
| NM600 | High-chromium wear steel | 6 | Platform and boom pipe with high-abrasion aggregate, long boom |
| 55MN (heat-treated) | HRC 62 to 65 | 3 | Single-layer pipe, trailer-pump boom, mid-range wear |
| ST52 (carburized) | 2 mm @ HRC 60 to 62 | 3 | Outer layer, carburized reducer |
| 37MN5 | 9 mm single-layer | 3 | Reducer pipe, standard trailer-pump flange |
Application & Machine Fitment

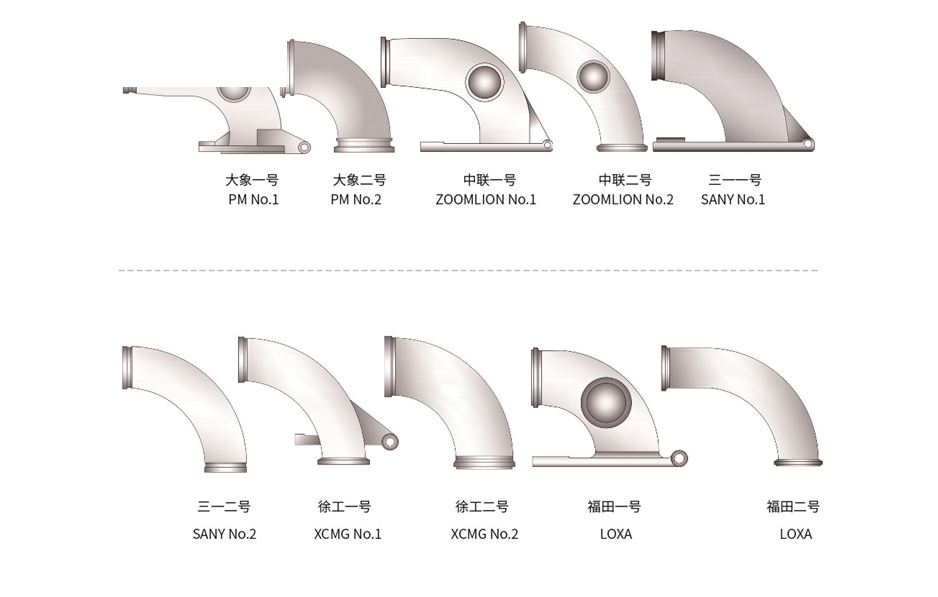

Application Fitment — PM / SANY / Zoomlion / XCMG / LOXA — Product Card
Archer concrete-pump pipe fittings and spare parts are used in the following applications and OEM platforms:
| Application | Typical Use |
|---|---|
| Truck-mounted concrete pump (boom pump) | Platform pipe, boom pipe, twin-wall elbow, S valve / rock valve, spectacle plate, cutting ring, hopper door, slewing lever, sealing cover, delivery cylinder |
| Trailer pump (stationary pump) | 5K / HD / ZX / MF flange pipe and bends, twin-wall elbow, twin-wall pipe, twin-wall reducer, twin collar, manual shut-off valve, swing-leg pipe bracket, KCP concrete box |
| Concrete mixer truck | Gear reducer (P3301 / P4300/5300 / P7300 / PLM-7/9 / CML12/14/16 / DD33 / P68/75 / P80/92 / MAXI 6 to 8 m³ / SANY 8 to 15 m³ / XCMG 9 m³ / STETTER 9 to 12 m³ / FOTON 12 m³ / QDT 12 to 16 m³ / LONDON / KIMBLE / CONTECH) and hydraulic pump (Rexroth A2FO56 / A10VO28 / A4FO28, Sauer SPV & SMF / Sauer 90 series, Eaton series, L2F12R4P4) |
| Shotcrete / wet-mix spraying | Shotcrete nozzle 1.5HD / 2.0HD / 2.5HD, metric hose end, HD hose end, fabric braid hose, steel-wire braid hose, rubber hose pipe seat |
| Site pipeline & cleaning | Cleaning ball (soft / medium / hard, DN80 to DN200), devil catchers & blowout caps, gasket, manual shut-off valve, swing-leg pipe bracket |
Build & Manufacturing Process
Each pipe, elbow and reducer is produced on CNC-controlled equipment with seven integrated process steps. Every batch is tested for dimensional accuracy, hardness, pressure resistance and surface treatment before packing.
| Step | Process | Key Parameter |
|---|---|---|
| 1 | Steel smelting & rolling | Q345 / ST52 / 55MN / 37MN5 / NM600 ingot, hot-rolled to pipe billet |
| 2 | Pipe forming & machining | Numerical-control forming, wall-thickness control 2.0 to 9.0 mm per spec |
| 3 | Inner-layer sleeve embedment | CR28 / CR23 / CR15 / NM600 sleeve pressed into pipe head, 3 to 8 mm wall |
| 4 | High-frequency quenching | HRC 58 to 62, hardening depth 2 to 2.5 mm, controlled by induction coil |
| 5 | Carburizing (optional) | ST52 carburized reducer, 2 mm depth, HRC 60 to 62 |
| 6 | CNC automatic welding | Two sets of automatic welding machines, electroslag welding, end-flange welding |
| 7 | Surface treatment & packing | Shot blasting, anti-rust coating, custom colour, export packing on wooden pallet or steel crate |
Common Failure Symptoms & What to Replace
Use this quick diagnostic table to identify which part of the delivery chain is failing. Send us the symptom and the machine model; we will quote the matching part within 24 hours.
| Symptom | Likely Cause | Replace With |
|---|---|---|
| Delivery volume drops, pumping pressure rises | Inner pipe wall worn thin, twin-wall sleeve separation at pipe head | Twin-wall delivery pipe, CR28 / NM600 inner sleeve |
| Concrete leak at boom elbow joint | Weld fatigue at elbow R1000 mm, sealing cover worn | CR28 / CR23 elbow, sealing cover, new clamp or wedge coupling |
| Hopper leaking concrete, slow swing | Bottom hopper door pivot worn, slewing lever / pivot bushing loose, S valve cut | Bottom hopper door, slewing lever, slewing pivot, S valve, wear plate, cutting ring |
| Output pressure unstable, low ΔP | Spectacle plate and cutting ring worn, thrust ring cracked | Spectacle plate, cutting ring, thrust ring, intermediate ring |
| Plunger cylinder scoring, hydraulic oil in concrete | Piston seal blow-by, cylinder bore scored, concrete seal body worn | Plunger cylinder, seal kit, seal set for plunger cylinder, concrete seal body |
| Concrete spurt from boom-end hose | Rubber hose burst at ferrule, hose end ferrule loose | Steel-wire braid hose, metric / HD hose end, hose tail and ferrule, rubber hose pipe seat |
| Mixer truck drum will not rotate, abnormal noise | Gear reducer planetary wear, hydraulic pump pressure loss | P3301 / P4300 / P7300 / PLM-7/9 reducer, Rexroth / Sauer / Eaton hydraulic pump, HYD motor |
| Joint leak at pipe coupling | Snap / bolt / wedge clamp worn, gasket hardened, single-side collar cracked | Snap coupling, bolt coupling, wedge coupling, new gasket, weld-on collar (SK / HD / ZX / M/F) |
Quality Control & Documentation
- ISO 9001 quality system; high-frequency quenching hardness HRC 58 to 65, hardening depth 2 to 2.5 mm verified on every batch.
- Carburized ST52 reducers: 2 mm case depth, HRC 60 to 62, 100% lot-tested.
- 100% pre-shipment dimensional inspection, hydrostatic pressure test up to 200 bar for ZX / MF flange pipe.
- Pre-shipment hardness test and ultrasonic wall-thickness check on twin-wall pipe, reducer pipe and elbows.
- 36 specialised technical personnel oversee process control across forming, quenching, welding and surface treatment.
- Inner-layer material certificate, surface-treatment report and batch-traceability record available on request.
Related Construction Machinery Parts
Frequently Asked Questions
Need Concrete Pump Pipe Fittings or Spare Parts? Get a Quote Today
Send your machine model (PM / Schwing / SANY / Zoomlion / XCMG), the worn part photo, or the OEM part number. We match the right twin-wall pipe, elbow, reducer, clamp, hose, seal kit, hydraulic pump or gear reducer — OEM-grade replacement or aftermarket — and quote within 24 hours.
