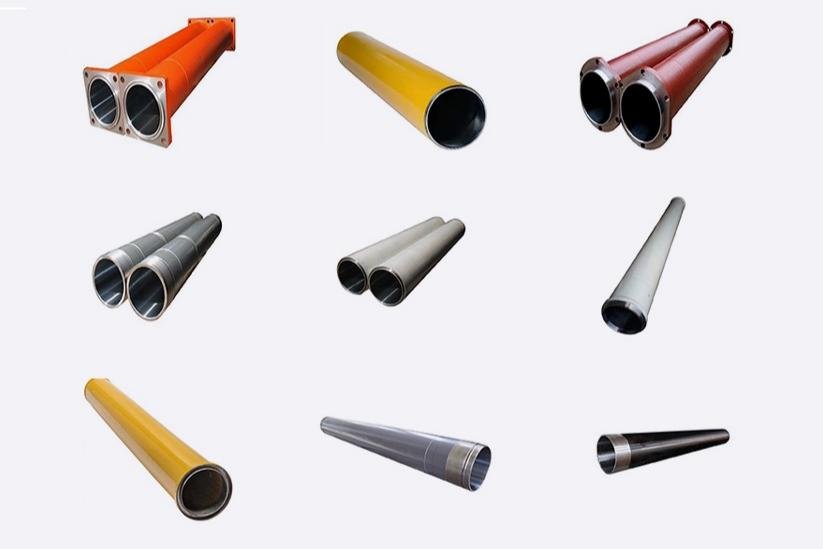

Concrete Pump Delivery Cylinder for SANY XCMG ZOOMLION
Premium Concrete Pump Delivery Cylinders fully compatible with SANY, XCMG, and ZOOMLION truck/trailer pumps. Features a seamless steel tube structure with a high-chrome inner layer (thickness 0.25–0.30mm) and hardness ≥ HRC 60. Engineered for extreme wear resistance and high-pressure pumping in infrastructure and mining projects. Available in ID 200mm/230mm with customizable lengths.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
Concrete Pump Delivery Cylinder
⚙️ Heavy-Duty Chrome-Plated Pumping Cylinders for SANY, XCMG, and ZOOMLION Boom Pumps
Product Overview
In high-intensity high-rise construction foundations, mega bridge pylons, and infrastructure concrete placement operations, delivery cylinders endure continuous mechanical scraping and chemical erosion from hot-mix concrete mixtures. At ARCHER, we supply factory-calibrated, high-wear resistant concrete pump delivery cylinders designed for seamless integration on SANY, XCMG, and ZOOMLION pumping machinery. As the central compression capsule for directional slurry displacement, our delivery cylinders feature an inside surface processed via precision laser cladding and thick industrial chromium plating. Built using seamless carbon structural steel tubes, these cylinders guarantee original factory fluid-pressure limits and structural longevity under relentless alternating piston stresses.
Comprehensive Machinery Applications & Core Dimensions
Chinese concrete machinery leads global infrastructure projects in vertical and horizontal displacement efficiency. ARCHER maintains dedicated supply line logistics and precise cross-referencing across multiple pump configurations:
🏗️ Truck-Mounted Boom Pumps
Direct geometric compatibility for heavy mobile truck pumps featuring varied boom reaches from 37m to 67m+ allocations:
• SANY HBT & SY Series Truck Pumps (e.g., SY5290THB, SY5418THB)
• XCMG HB Series Truck-Mounted Boom Assemblies (e.g., HB52K, HB62K)
• ZOOMLION Pumping Fleets (e.g., ZLJ5440THBK, ZLJ5310THB)
🚧 Stationary Trailer Pumps & Line Pumps
High-pressure cylinder bodies engineered to handle dense aggregate concrete types on continuous high-rise layouts:
• Standard Bored Calibers: Φ200, Φ230, and Φ260 Series
• Standard Structural Lengths: 1400mm, 1650mm, 1800mm, and 2100mm Assemblies
• Specialized High-Pressure Bored Cylinder Modules for Tunneling Rigs
Each concrete delivery cylinder block works perfectly alongside our premium concrete ram pistons, intermediate water box seals, back-end hydraulic drive cylinders, wear-resistant Spectacle Plates, Cutting Rings, and S-Valve assemblies to achieve a comprehensive tight-seal pumping matrix.
Why Source Pumping Cylinders from ARCHER?
🎯 Ultra-Thick Industrial Chrome Layer
Our cylinders feature internal chromium plating with a hardness exceeding HV900, maintaining consistent depth to effectively resist aggressive abrasive scoring from sharp sand particles.
🔧 Micro-Tolerance Straightness Calibration
Utilizing advanced internal honing processes, our cylinders keep ovality errors under 0.03mm, completely stopping premature wear on rubber piston rams and preventing water leaks.
📦 Moisture-Proof Heavy Anti-Rust Packing
To eliminate any risks of rust or deep pitting from ocean humidity, internal bores are coated with heavy protective grease, vacuum-capped, and locked inside steel-banded crates.
Technical FAQ
▶ 1. How do I choose the exact matching delivery cylinder part code for my concrete pump truck?
Because SANY, XCMG, and ZOOMLION implement distinct hydraulic manifold structures and water box flange setups across model generations, verification is essential. Please provide your machine’s 17-digit Serial Number (VIN) or specify the exact internal bore diameter (e.g., 230mm) along with the total physical cylinder length (e.g., 1650mm) to guarantee an accurate fit.
▶ 2. What are the common operational indicators that a concrete pumping cylinder requires immediate replacement?
Clear warning indicators include recurrent concrete slurry leaking past the piston heads into the flush water box, localized bubbling or peeling of the internal chrome layer, deep linear score lines that rapidly shred new rubber pistons, or a drop in maximum vertical pumping pressure due to internal fluid bypass.
▶ 3. What is the specialization and scope of parts supply offered by your company?
Archer Parts is a specialized, global-facing supplier and exporter based in China, focusing entirely on high-quality spare parts for Chinese construction machinery, material handling equipment, and heavy-duty commercial trucks. We primarily supply genuine and OEM replacement components for market-leading Chinese brands, including HOWO, XCMG, SANY, ZOOMLION, SHANTUI, and SHACMAN.
