SHACMAN F3000 Spare Parts
Delong · Genuine & OEM Supply

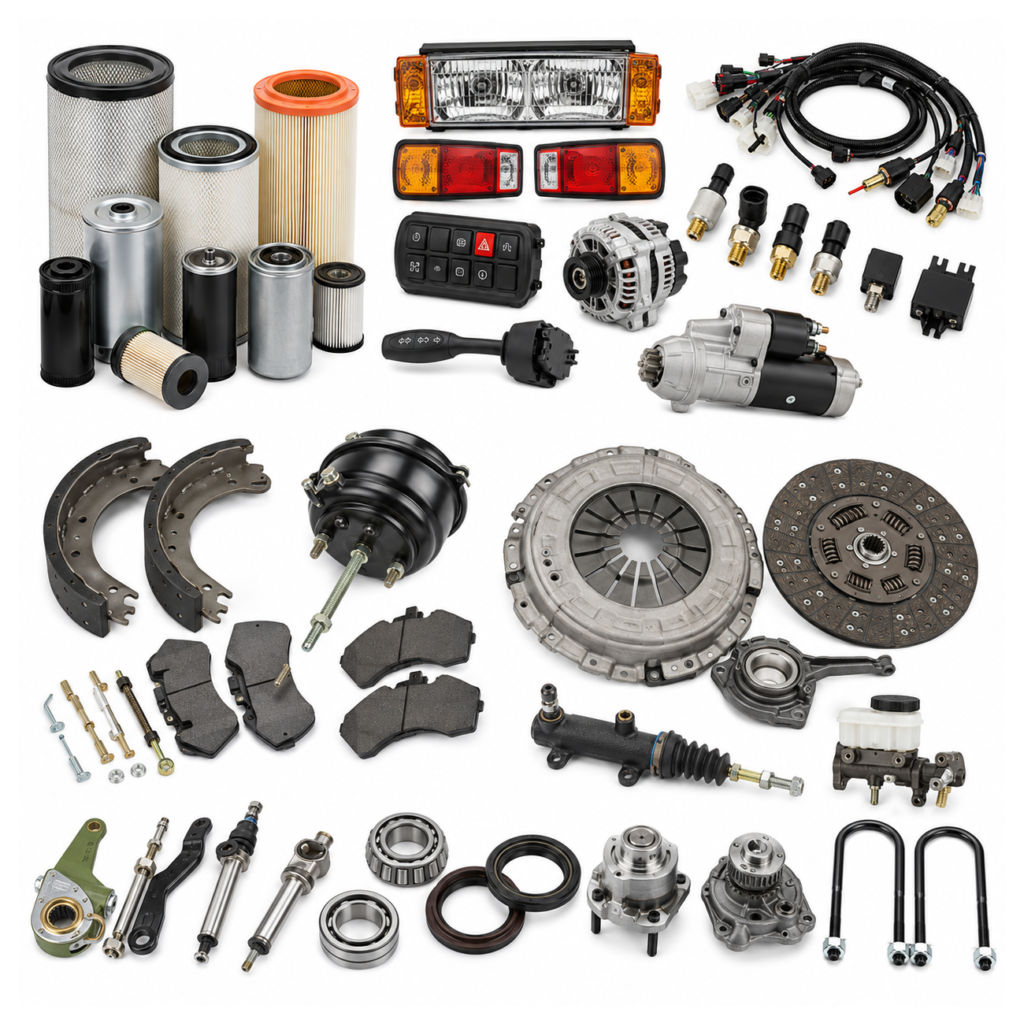

SHACMAN F3000 Spare Parts — Wear Parts Catalog
Comprehensive wear-parts supply for the SHACMAN F3000 (Delong) heavy truck. We cover twelve systems — filtration, fuses & relays, switches & sensors, lighting, wipers & washers, mirrors & door hardware, belts & hoses, brake, clutch, suspension & steering, wheel bearings & seals, and engine air system. Every part is cross-referenced against your truck’s VIN / chassis number for guaranteed fitment. Three quality tiers: Genuine SHACMAN OEM, OEM-Grade Replacement, and certified aftermarket.
| Filters |
Fuses & Relays |
Switches |
Lighting |
Brake |
Clutch |
Suspension |
Wheel |
|
128
Part Numbers
|
12
Categories
|
3
Quality Tiers
|
24h
Quote Turnaround
|
F3000
Delong Fit
|
100%
Pre-Ship Inspection
|
Filters
Engine oil, fuel (coarse & fine), air and urea-injection filters for the SHACMAN F3000 (Delong). These are the highest-frequency service items — replace on the recommended interval to protect the injection system, turbo and aftertreatment.
| Part Name |
Part No. (Reference) |
Fitment |
| filter |
1000428205 |
SHACMAN F3000 · Delong |
| fuel filter |
1000424916 |
SHACMAN F3000 · Delong |
| fuel filter |
1000422382 |
SHACMAN F3000 · Delong |
| Air filter |
— |
SHACMAN F3000 · Delong |
| filter |
612640130438 |
SHACMAN F3000 · Delong |
Fuses & Relays
Circuit protection and control relays for the F3000 electrical system — blade fuses, fusible links and 12V/24V relays covering lighting, starting, intake heating and body control.
| Part Name |
Part No. (Reference) |
Fitment |
| 30A fuse |
DZ93189712128 |
SHACMAN F3000 · Delong |
| 80A fuse |
DZ93189712134 |
SHACMAN F3000 · Delong |
| Orange fuse wire |
81.25436.0079 |
SHACMAN F3000 · Delong |
| White fuse wire |
81.25436.0068 |
SHACMAN F3000 · Delong |
| Red fuses |
81.25436.0065 |
SHACMAN F3000 · Delong |
| Blue fuse |
81.25436.0066 |
SHACMAN F3000 · Delong |
| Yellow fuse |
81.25436.0067 |
SHACMAN F3000 · Delong |
| Relay |
81.25902.0410 |
SHACMAN F3000 · Delong |
| Relay |
81.25902.0459 |
SHACMAN F3000 · Delong |
| Relay |
81.25902.0460 |
SHACMAN F3000 · Delong |
| Relay |
DZ9118580002 |
SHACMAN F3000 · Delong |
| Flash relay (improved) |
DZ93189585806 |
SHACMAN F3000 · Delong |
| Central relay |
DZ9100586024 |
SHACMAN F3000 · Delong |
| Air intake heating relay |
DZ9100586270 |
SHACMAN F3000 · Delong |
| Rear fog light relay |
81.25902.0469 |
SHACMAN F3000 · Delong |
| Parking relay valve |
DZ95259360106 |
SHACMAN F3000 · Delong |
| Driving relay valve |
DZ95259360105 |
SHACMAN F3000 · Delong |
Switches & Sensors
Rocker switches, brake and air-pressure switches, differential-lock switches, magnetic valves and the combination gauge. All matched to the F3000 cab harness and connector type.
| Part Name |
Part No. (Reference) |
Fitment |
| Emergency alarm rocker switch |
81.25505.6291 |
SHACMAN F3000 · Delong |
| Combination switch |
81.25509.0124 |
SHACMAN F3000 · Delong |
| Brake switch |
DZ93189582550 |
SHACMAN F3000 · Delong |
| Exhaust brake switch |
DZ9100586055 |
SHACMAN F3000 · Delong |
| Fog light rocker switch |
81.25505.6607 |
SHACMAN F3000 · Delong |
| PTO rocker switch |
DZ9200581025 |
SHACMAN F3000 · Delong |
| PTO working selector rocker switch |
DZ9200581026 |
SHACMAN F3000 · Delong |
| Air pressure sensor |
DZ97189711201 |
SHACMAN F3000 · Delong |
| Air pressure switch |
DZ97189711310 |
SHACMAN F3000 · Delong |
| Master power switch |
DZ97189763039 |
SHACMAN F3000 · Delong |
| magnetic valve （normally closed type） |
DZ97189716021 |
SHACMAN F3000 · Delong |
| magnetic valve （normal type） |
DZ97189716022 |
SHACMAN F3000 · Delong |
| Inter-axle differential rocker switch |
81.25505.6280 |
SHACMAN F3000 · Delong |
| Front axle wheel differential lock switch |
DZ93189582520 |
SHACMAN F3000 · Delong |
| Inter-wheel differential locking rocker switch |
81.25505.6267 |
SHACMAN F3000 · Delong |
| Combination gauge |
DZ93189584150 |
SHACMAN F3000 · Delong |
| Speaker switch rocker switch |
DZ9200581021 |
SHACMAN F3000 · Delong |
| Light rocker switch |
81.25505.6255 |
SHACMAN F3000 · Delong |
| Light brightness rocker switch |
81.25907.0225 |
SHACMAN F3000 · Delong |
| Dry air filter blocking alarm switch. |
DZ97189711320 |
SHACMAN F3000 · Delong |
Lighting
Headlamps (with protective grilles), combination tail lamps, turn-signal and side-marker lamps, plus the 24V bayonet bulbs — for the F3000 day and cab lighting circuit.
| Part Name |
Part No. (Reference) |
Fitment |
| Light bulb (P21W-24V-BAY15S-HD) |
81.25901.0075 |
SHACMAN F3000 · Delong |
| Left headlight assembly (integral) |
DZ93189724110 |
SHACMAN F3000 · Delong |
| Right headlight assembly (integral) |
DZ93189724120 |
SHACMAN F3000 · Delong |
| Left headlight protection grid assembly |
SZ981000732 |
SHACMAN F3000 · Delong |
| Right front headlamp protect fence assembly |
SZ981000737 |
SHACMAN F3000 · Delong |
| Left combination tail light |
81.25225.6465-WX |
SHACMAN F3000 · Delong |
| Right combination taillight |
81.25225.6464-WX |
SHACMAN F3000 · Delong |
| Steering light |
81.25320.6082 |
SHACMAN F3000 · Delong |
| Side marker light |
81.25260.6101 |
SHACMAN F3000 · Delong |
Wipers & Washers
Wiper motor, blade, arm and linkage, the intermittent / wiper-flash controller, and the windshield washer pump and reservoir — keep visibility clear in harsh site conditions.
| Part Name |
Part No. (Reference) |
Fitment |
| Wiper/flash interval controller |
DZ93189585807 |
SHACMAN F3000 · Delong |
| Wiper motor 2L |
81.26401.6130 |
SHACMAN F3000 · Delong |
| De’long wiper blade |
81.26440.0038 |
SHACMAN F3000 · Delong |
| Wiper connecting rod assembly |
81.26411.6089 |
SHACMAN F3000 · Delong |
| De’long wiper arm |
81.26430.0113 |
SHACMAN F3000 · Delong |
| Front windshield spray pump |
81.26485.6030 |
SHACMAN F3000 · Delong |
| Rear water storage tank assembly |
81.26481.6036 |
SHACMAN F3000 · Delong |
| Water receiver cove |
81.26481.0026 |
SHACMAN F3000 · Delong |
Mirrors & Door Hardware
Rear-view, front and blind-spot mirrors, door locks, external handles and the steering-column lock — cab exterior and access parts for the F3000.
| Part Name |
Part No. (Reference) |
Fitment |
| Steering wheel lock assembly |
SZ946000700 |
SHACMAN F3000 · Delong |
| Left rear-view mirror assembly |
DZ13241770910 |
SHACMAN F3000 · Delong |
| Right rear-view mirror assembly |
DZ13241770920 |
SHACMAN F3000 · Delong |
| Front-view mirror |
DZ13241770940 |
SHACMAN F3000 · Delong |
| Complementary exterior view mirror assembly |
DZ13241770930 |
SHACMAN F3000 · Delong |
| Door window control unit |
DZ95189586600 |
SHACMAN F3000 · Delong |
| External handle assembly |
SZ133000701 |
SHACMAN F3000 · Delong |
| Door lock mechanism assembly |
DZ1643340010 |
SHACMAN F3000 · Delong |
| Left door lock assembly |
DZ1643340030 |
SHACMAN F3000 · Delong |
| Right door lock assembly |
DZ1643340040 |
SHACMAN F3000 · Delong |
Belts & Hoses
Multi-ribbed drive belt, high-pressure hydraulic hoses and oil lines, including the clutch pipe — specified by length and fitting for direct replacement.
| Part Name |
Part No. (Reference) |
Fitment |
| Belt / ribbed belt |
DZ13241845032 |
SHACMAN F3000 · Delong |
| High-pressure hose |
DZ97259820134 |
SHACMAN F3000 · Delong |
| High pressure hose assembly |
DZ9100470106 |
SHACMAN F3000 · Delong |
| Oil pipe |
DZ93259820052 |
SHACMAN F3000 · Delong |
| High-pressure hose |
DZ93259820154 |
SHACMAN F3000 · Delong |
| High-pressure hose |
DZ93259820026 |
SHACMAN F3000 · Delong |
| Clutch tubing |
DZ96259230420 |
SHACMAN F3000 · Delong |
Brake System
Brake valves, relay valves, diaphragm and spring-brake chambers, brake friction plates, clearance-adjustment arms and return springs — the F3000 pneumatic brake circuit.
| Part Name |
Part No. (Reference) |
Fitment |
| Rear leaf spring U-bolt |
DZ9118520124 |
SHACMAN F3000 · Delong |
| Master brake valve |
DZ93189360034 |
SHACMAN F3000 · Delong |
| Brake chamber |
81.51101.6264 |
SHACMAN F3000 · Delong |
| Brake chamber |
81.51101.6265 |
SHACMAN F3000 · Delong |
| Return spring |
81.97610.0115 |
SHACMAN F3000 · Delong |
| Friction plate |
81.50221.0943-WX |
SHACMAN F3000 · Delong |
| Hollow rivet |
81.92201.0109-WX |
SHACMAN F3000 · Delong |
| Diaphragm spring brake chamber |
SZ905000742 |
SHACMAN F3000 · Delong |
| Clearance adjustment arm assembly (left) |
199000340056 |
SHACMAN F3000 · Delong |
| Clearance adjustment arm assembly (right) |
199000340057 |
SHACMAN F3000 · Delong |
| Return spring pin |
81.50211.0018 |
SHACMAN F3000 · Delong |
| Brake friction plate |
HD90149340094-WX |
SHACMAN F3000 · Delong |
Clutch System
Clutch booster cylinder, master cylinder with reservoir, 430 mm driven plate, pressure plate (clutch cover) and release bearing — full clutch actuation and friction set.
| Part Name |
Part No. (Reference) |
Fitment |
| Clutch boosting cylinder |
DZ9112230178 |
SHACMAN F3000 · Delong |
| Clutch master pump and fluid reservoir assembly. |
DZ93189230090 |
SHACMAN F3000 · Delong |
| Clutch driven plate assembly |
DZ9114160032-WX |
SHACMAN F3000 · Delong |
| Clutch cap assembly |
SZ916000701 |
SHACMAN F3000 · Delong |
Suspension & Steering
Front and rear shock absorbers, leaf-spring U-bolts, DTF flange nuts, stop washers, engine suspension cushions and the shock-absorber bracket — chassis mounting and ride control.
| Part Name |
Part No. (Reference) |
Fitment |
| Front suspension absorber |
DZ13241430150 |
SHACMAN F3000 · Delong |
| Rear suspension shock absorber |
DZ13241440150 |
SHACMAN F3000 · Delong |
| Shock absorber |
DZ13241440080 |
SHACMAN F3000 · Delong |
| Shock absorber assembly |
DZ95259680121 |
SHACMAN F3000 · Delong |
| Stop washer |
DZ95259520845 |
SHACMAN F3000 · Delong |
| Hexagon flange nut |
DZ91259527024 |
SHACMAN F3000 · Delong |
| Hexagon flange nut |
DZ91259527020 |
SHACMAN F3000 · Delong |
| Engine front suspension cushion |
DZ9114593001 |
SHACMAN F3000 · Delong |
| Shock absorber bracket assembly |
DZ96319680129 |
SHACMAN F3000 · Delong |
| Base assembly |
DZ95259190601 |
SHACMAN F3000 · Delong |
Wheel, Bearings & Seals
Wheel bolts and nuts, hub and taper-roller bearings, axle and wheel oil seals and shaft seals — wheel-end and drivetrain sealing & rotation parts.
| Part Name |
Part No. (Reference) |
Fitment |
| Separate bearings |
DZ9114160044-WX |
SHACMAN F3000 · Delong |
| Rear wheel bolt |
H150A22105AZF3 |
SHACMAN F3000 · Delong |
| Hub inner bearing |
06.32489.0009 |
SHACMAN F3000 · Delong |
| shaft seal ring left |
HD90009340138 |
SHACMAN F3000 · Delong |
| Bearing |
32019 |
SHACMAN F3000 · Delong |
| shaft seal ring right |
HD90009340139 |
SHACMAN F3000 · Delong |
| Conic roller bearing |
32017 |
SHACMAN F3000 · Delong |
| Conic roller bearing |
HD90009320009 |
SHACMAN F3000 · Delong |
| Conic roller bearing 32313BJ2 |
06.32499.0019 |
SHACMAN F3000 · Delong |
| Conic roller bearing |
33014 |
SHACMAN F3000 · Delong |
| Wheel nut (30) / with nut protection cap |
DZ95189611301 |
SHACMAN F3000 · Delong |
| Main reducer oil seal |
DZ9112320920 |
SHACMAN F3000 · Delong |
| Oil seal |
06.56289.0332 |
SHACMAN F3000 · Delong |
| Oil seal |
06.56289.0331L |
SHACMAN F3000 · Delong |
| Oil seal |
06.56289.0331R |
SHACMAN F3000 · Delong |
| Wheel bolts |
H150A22125BZF3 |
SHACMAN F3000 · Delong |
| Oil seal |
HD95129320010 |
SHACMAN F3000 · Delong |
| Oil seal |
06.56289.0319 |
SHACMAN F3000 · Delong |
Engine & Air System
Starter motor, air compressor, WABCO air-handling unit, steering oil pump, fuel-tank cap / cover and the hydraulic hand pump — engine ancillaries and air-supply components.
| Part Name |
Part No. (Reference) |
Fitment |
| starter |
612600091077 |
SHACMAN F3000 · Delong |
| Air compressor |
612630030047 |
SHACMAN F3000 · Delong |
| Iron tank cover protection assembly |
DZ91189550195 |
SHACMAN F3000 · Delong |
| Iron fuel tank cap |
DZ91189550023 |
SHACMAN F3000 · Delong |
| Hydraulic hand pump |
DZ93259820400 |
SHACMAN F3000 · Delong |
| Air handling unit (WABCO / oil filter) |
DZ96189361084 |
SHACMAN F3000 · Delong |
| steering oil pump assembly/ISM/1.25s/17MPa |
DZ97189470117 |
SHACMAN F3000 · Delong |
| Steering oil pump |
DZ97189470127 |
SHACMAN F3000 · Delong |
Three Quality Tiers — Choose What Fits Your Job
|
Genuine SHACMAN OEM
Manufactured to SHACMAN’s exact specification and supplied in original packaging. Highest reliability and warranty backing — the right choice for safety-critical and high-stress components (brake valves, relays, controllers, clutch parts).
|
OEM-Grade Replacement
Produced by the same or equivalent supplier to identical dimensions and performance, without the SHACMAN markup. Ideal for routine electrical, filters, seals, bearings and wear parts — 15–30% less than genuine.
|
Certified Aftermarket
Validated third-party parts for high-frequency consumables you’ve qualified. Cost-effective for non-critical items — we document the tier on every quote so you always know what you’re buying.
|
Why Source SHACMAN Parts Through Archer
- VIN / chassis cross-reference — every part matched to your exact SHACMAN F3000 build before quoting
- Stock confirmed up front — no “we’ll see after payment” delays
- Tier transparency — genuine, OEM-grade or aftermarket, labelled on every quote
|
- Pre-shipment inspection with photo proof on major components
- Worldwide delivery to Africa, Middle East, South America, SEA & Europe
- One partner, many brands — SHACMAN, HOWO, XCMG, SANY, Lovol and more
|
Need SHACMAN F3000 Parts? Get a Quote Today
Send your VIN / chassis number or the part numbers above. We’ll confirm fitment, stock and tier, then quote within 24 hours.
Frequently Asked Questions
Q1. Are these SHACMAN F3000 parts genuine?
We supply all three tiers — Genuine SHACMAN OEM (original packaging), OEM-Grade Replacement (identical spec, lower cost), and certified aftermarket for consumables. The tier is stated on every quote so you choose based on criticality and budget.
Q2. How do I confirm a part fits my SHACMAN F3000?
Send your truck’s VIN / chassis number (or the part number from the tables above). We cross-reference against the SHACMAN parts catalog and EPC before quoting — no guessing.
Q3. Do you ship these wear parts internationally?
Yes. All items — filters, electrical, brake, clutch and undercarriage parts — ship worldwide to Africa, the Middle East, South America, Southeast Asia and Europe, with pre-shipment inspection on major components.
Q4. What is the lead time for these SHACMAN parts?
In-stock items ship within 1–3 business days; made-to-order and genuine-packaged parts typically run 7–15 days from China. We confirm exact stock and lead time on the quote before you commit.
