S Valve Assembly for XCMG SANY ZOOMLION
Maintain high-pressure concrete pumping continuity and prevent structural slurry blowouts with premium S Valve Assemblies from ARCHER. We supply warehouse-verified, high-durability genuine and OEM replacement S tubes precisely calibrated for SANY, XCMG, and ZOOMLION truck-mounted boom pumps and trailer line pumps.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details

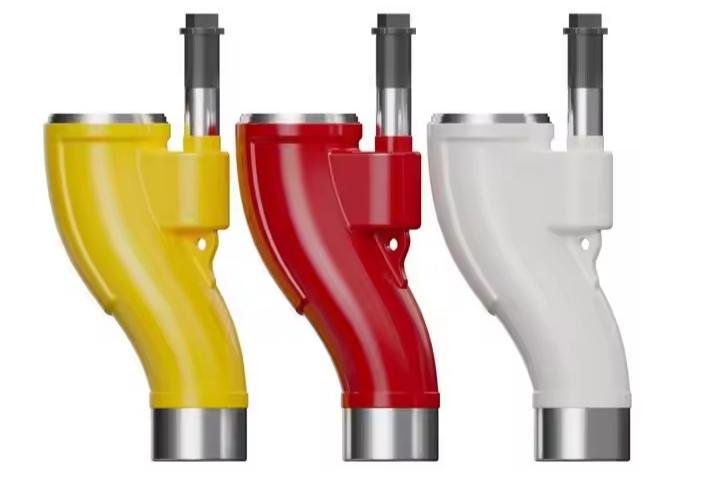

S Valve Assembly
⚙️ Heavy-Duty Tungsten Carbide Hardfaced S-Tubes for SANY, XCMG, and ZOOMLION Pumping Systems
Product Overview
In high-volume industrial concrete placement, commercial foundations, and mega-infrastructure development, the concrete pump hopping mechanism requires maximum structural integrity. At ARCHER, we supply factory-calibrated, wear-resistant S valve assemblies designed for seamless integration on SANY, XCMG, and ZOOMLION concrete pumps. As the central oscillating directional conduit inside the material hopper, our S-tubes are forged from high-tensile structural carbon steel, featuring internal micro-machined bores and thick, robotic tungsten carbide welding overlays on high-impact locations. Our premium S tubes guarantee original factory fluid-seal limits, smooth aggregate crossover, and maximum operational cycles under demanding site conditions.
Comprehensive Machinery Applications & Core Dimensions
Chinese concrete machinery leads global infrastructure projects in vertical and horizontal displacement efficiency. ARCHER maintains dedicated supply line logistics and precise cross-referencing across multiple pump configurations:
🏗️ Truck-Mounted Boom Pumps
Direct geometric compatibility for heavy mobile truck pumps featuring varied boom reaches from 37m to 67m+ allocations:
• SANY HBT & SY Series Truck Pumps (e.g., SY5290THB, SY5418THB)
• XCMG HB Series Truck-Mounted Boom Assemblies (e.g., HB52K, HB62K)
• ZOOMLION Pumping Fleets (e.g., ZLJ5440THBK, ZLJ5310THB)
🚧 Stationary Trailer Pumps & Line Pumps
High-pressure S pipe tubes engineered to handle dense aggregate concrete types on continuous high-rise layouts:
• Standard Bore Calibers: Φ200, Φ230, and Φ260 Systems
• Large Mouth to Small Mouth Transaxial Flow Configurations
• Hardfaced Spline Shaft Ends for Heavy Shifting Lever Clamping
Each complete S-pipe assembly is fully integrated with structural accessories, including hardened spline shafts, rubber seal rings, outwear bearings, discharge seals, and works perfectly with our premium wear spectacle plates and cutting rings to achieve a completely tight-seal pumping matrix.
Why Source S Valve Assemblies from ARCHER?
🎯 Advanced Tungsten Carbide Cladding
Critical friction areas at the S tube’s small and large mouths feature an integrated, high-thickness tungsten carbide hardfacing weld layer, providing exceptional anti-abrasion durability.
🔧 100% Precision Spline Shaft Alignment
Our S pipes strictly trace official factory dimensions, ensuring exact spline tolerances for the swing lever attachment, preventing structural loose play or timing delay.
📦 Heavy Wooden Ocean Export Packaging
To eliminate spline threading damage or corrosion during sea transport, each S-tube is covered with heavy anti-rust oil, padded, and bolted inside steel-banded wood cases.
Technical FAQ
▶ 1. How do I identify the exact matching S valve tube model for my concrete pump machine?
Because SANY, XCMG, and ZOOMLION utilize customized outlet sizes, shifting shaft splines, and total length configurations across models, validation is critical. Please provide your machine’s 17-digit Serial Number (VIN) or specify the standard bore caliber (e.g., 200mm vs 230mm) along with a clear picture of your current S pipe shape.
▶ 2. What are the common operational warning signs that an S tube needs replacement?
Typical indicators include aggregate slurry leaks inside the hopper box, extreme thinning or localized holes inside the pipe curves, broken spline threads on the shifting shaft end, or severe loss of vertical pumping pressure caused by structural slurry bypass around the wear ring interface.
▶ 3. What is the specialization and scope of parts supply offered by your company?
Archer Parts is a specialized, global-facing supplier and exporter based in China, focusing entirely on high-quality spare parts for Chinese construction machinery, material handling equipment, and heavy-duty commercial trucks. We primarily supply genuine and OEM replacement components for market-leading Chinese brands, including HOWO, XCMG, SANY, ZOOMLION, SHANTUI, and SHACMAN.
