Wear Resistant Concrete Pump Elbow for SANY XCMG ZOOMLION
Extend pipeline operational spans and eliminate catastrophic high-pressure blowouts with premium Wear Resistant Concrete Pump Elbows from ARCHER. We supply warehouse-verified genuine and OEM twin-wall casting elbows tailored for SANY, XCMG, and ZOOMLION truck-mounted boom pumps. Engineered with an ultra-hard inner chromium alloy lining and a high-tensile outer steel structural shell, our pipe bends provide industry-leading protection against intense slurry friction and aggregate directional impact.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details

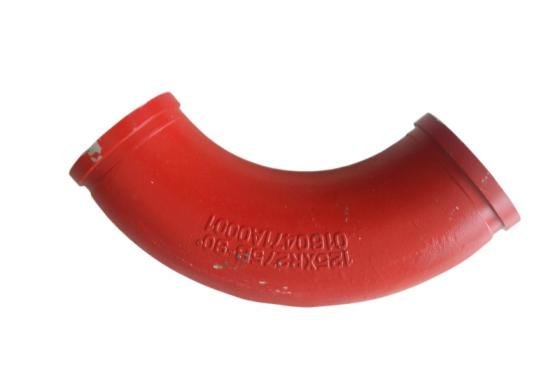

Wear Resistant Concrete Pump Elbow
⚙️ Premium Twin-Wall Chromium Alloy Pipe Bends for SANY, XCMG, and ZOOMLION Boom Systems
Product Overview
In dense infrastructure mass-concrete casting, high-rise commercial foundations, and continuous structural pumping layouts, delivery pipe elbows face severe localized scoring and erosion. As aggregate fast-flows under high hydraulic forces, directional shifts create concentrated friction zones inside the bend radius. At ARCHER, we supply factory-calibrated, high-durability wear resistant concrete pump elbows engineered for SANY, XCMG, and ZOOMLION boom trucks and trailer placement assemblies. Built using specialized twin-wall configuration technology, these pipe elbows combine an inner layer of ultra-hard chromium cast iron (hardness up to HRC63+) with a shatterproof structural outer shell. This ensures original equipment flow capacity, excellent vibration management, and extended maintenance intervals under severe aggregate friction.
Comprehensive Fleet Applications & Pipeline Specifications
Chinese concrete placement trucks lead international construction markets in vertical outreach and volume efficiency. ARCHER maintains deep warehousing and multi-spec tracking for diverse pipeline topologies:
🏗️ Truck-Mounted Boom & Line Pumps
Direct geometric and coupling cross-referencing for major mobile heavy truck fleets ranging from 37m to over 67m ranges:
• SANY SY-THB Series Mobile Boom Lines
• XCMG HB Series Truck-Mounted Pumping Loops
• ZOOMLION ZLJ Series Concrete Placing Systems
📐 Core Dimensional Configurations
Standardized pipeline components engineered for direct replacement at critical directional stress corners:
• Standard Bore Sizing: DN125 (5-Inch) Standard Configuration
• Angular Geometry: 90°, 45°, 30°, 15° Casting Segments
• Radius Variety: R180, R225, R240, R275, R500 Boom Corner Series
Every wear elbow component pairs perfectly with our heavy-duty forged pipe clamps, high-elasticity rubber sealing gaskets, straight twin-wall delivery tubes, end hoses, and concrete wash balls to form a completely leak-proof fluid-transport network.
Why Source Pipeline Wear Elbows from ARCHER?
🎯 Specialized Dual-Wall Casting Protection
Our twin-wall pipe elbows incorporate a high-chromium inner layer heat-tempered to HRC63-68, keeping the core structurally sound while delivering outstanding resistance against granite sand abrasion.
🔧 Accurate Flange Mounting Alignment
Manufactured strictly to SK148mm/ZX140mm original standards, our end-flanges provide perfect concentricity and zero-gap clamping to prevent high-pressure pressure drops or slurry leaks.
📦 Corrosion-Proof Seaworthy Transit Crating
To protect the exterior protective coatings and machined flange ends during long sea voyages, pipe elbows are layered with protective film and neatly stacked in steel-strapped wooden crates.
Technical FAQ
▶ 1. How do I match the exact concrete pump elbow model for my SANY or ZOOMLION boom truck?
Because pipeline configurations change depending on the boom model generation and specific section positions, checking measurements is essential. Please provide your machine’s 17-digit Serial Number (VIN) or specify the exact bend angle (e.g., 90°), flange style (SK vs ZX), radius (e.g., R275), and wall structure (Single vs Twin-wall) required.
▶ 2. What is the average operational lifespan of an ARCHER twin-wall concrete pump elbow?
Our premium twin-wall cast elbows typically deliver a pipeline throughput life of 50,000 to 80,000 cubic meters of concrete. This actual performance can vary based on aggregate composition, pumping velocities, mix moisture levels, and the proportion of sharp crushed granite or river rock materials.
▶ 3. What is the specialization and scope of parts supply offered by your company?
Archer Parts is a specialized, global-facing supplier and exporter based in China, focusing entirely on high-quality spare parts for Chinese construction machinery, material handling equipment, and heavy-duty commercial trucks. We primarily supply genuine and OEM replacement components for market-leading Chinese brands, including HOWO, XCMG, SANY, ZOOMLION, SHANTUI, and SHACMAN.
