Our HOWO Engine Spare Parts
The catalog covers essential engine components such as pistons, piston rings, cylinder liners, crankshafts, camshafts, turbochargers, injectors, fuel pumps, oil pumps, water pumps, gasket kits, filters, and complete engine overhaul kits. These parts are widely used for routine maintenance, engine rebuilding, and heavy-duty replacement applications in transport, construction, and mining operations.
With stable inventory availability, competitive export pricing, and professional logistics support, we help distributors, fleet operators, and maintenance companies source reliable HOWO engine spare parts quickly and efficiently for global markets.
Cylinder block-1
Pos Number of part Quantity Standard sepcification Designation 名 称 – 61500010383 1 Cylinder block assembly 气缸体总成 1 61500010356B 1 Cylinder block 气缸体 2 61500010366C 1 Crankcase 曲轴箱 3 VG1540010006 6 Cylinder liner 气缸套 4 190003982121 4 45/12 N05564 Core hole plug 碗形塞 5 190003989480 1 17/8 DIN05564 Core hole plug 碗形塞 6 190003989204 1 28/12 N05564 Core hole plug 碗形塞 7 VG1560010029 6 Camshaft bush 凸轮轴衬套 VG2600010990 1 Camshaft bush 凸轮轴衬套 8 90003901604A 2 Q5211226 Straight pin 圆柱销 Q5211220 1 Straight pin 圆柱销 9 VG1500010046 7 Sleeve bearings 主轴瓦（付） 10 VG1500010125 2 Thrust washers 止推片（付） 11 VG14010114 13 Headstock bolt 主轴承螺栓 VG14010217 1 Headstock bolt 主轴承螺栓 12 190003802493 27 M8×110-8.8-ZN DIN933 Hex head bolt 六角头螺栓 13 VG1400010032 2 Sealing ring 密封圈 14 190003989210 9 75/14 N05564 Core hole plug 碗形塞 15 VG2600070097 1 Oil return elbow connector 回油弯管 16 190003989289 4 40/12 N05564 Core hole plug 碗形塞 17 190003989215 4 45/12 N05564 Core hole plug 碗形塞 18 190003962621 6 A8 DIN7623 6S Hollow bolt 空心螺栓 19 VG9003080005 6 Sealing washer 复合密封垫圈 20 VG2600010659 6 Oil injection nozzle 喷嘴总成 21 190003909603 6 3×8 DIN1481 Spring type straight pin 弹性圆柱销 22 VG1047010050 1 Rear oil seal 后油封 23 190003989288 1 65/14 N05564 Core hole plug 碗形塞 24 VG1460070011 1 Main oil gallery screw plug 主油道后螺塞 25 VG2600010735 1 Sealing washer 复合垫圈 26 VG407010046 1 Sealing ring 密封圈 27 190003984080 1 17/7.3 N05564 Core hole plug 碗形塞 28 VG1500010215 7 Cylinder head stud 气缸盖螺栓 29 190003901604 6 12m6×20 DIN7 Straight pin 圆柱销 30 190003909626 6 6×12 DIN1481 Spring type straight pin 弹性圆柱销 31 VG1500010189 14 Cylinder head stud 气缸盖螺栓 32 VG288730061 1 Sealing ring 密封圈 33 VG61000010134 1 Sealing ring 密封圈

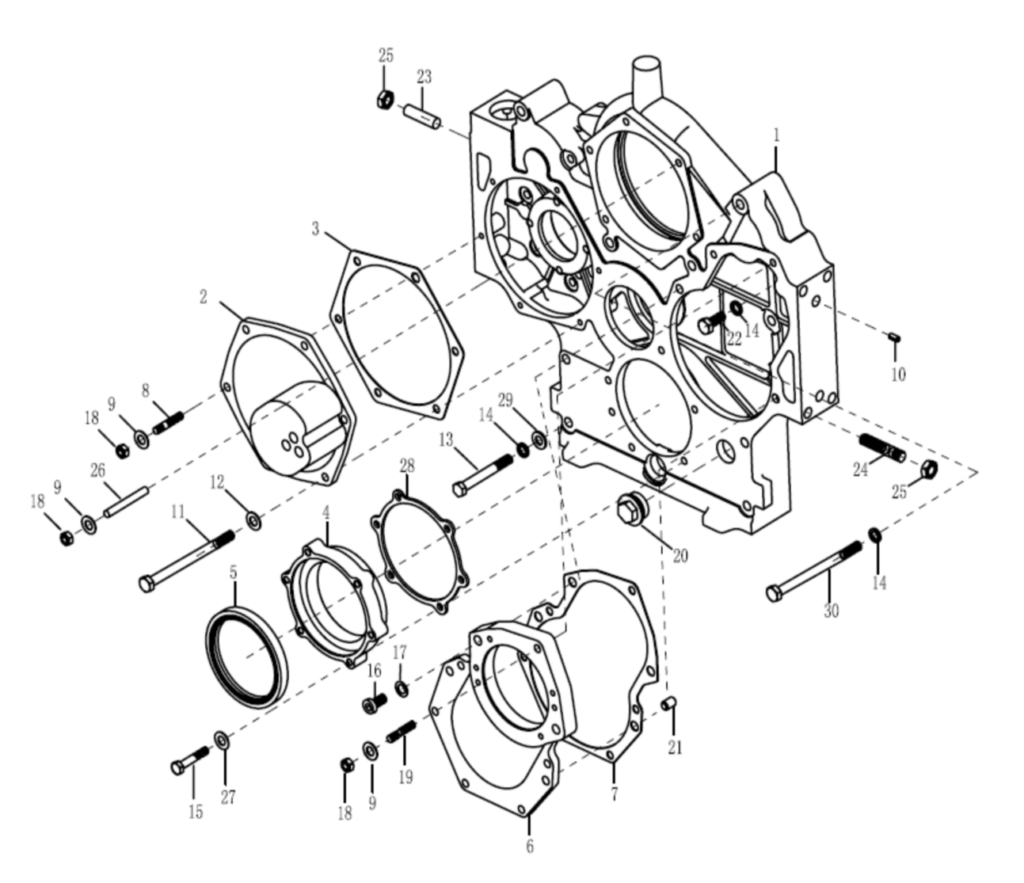

Cylinder block-2
Pos Number of part Quantity Standard sepcification Designation 名 称 1 61557010008 1 Gearcase 正时齿轮室 2 VG2600010830 1 Air compressor gear cover 空压机齿轮盖 3 VG14010040 1 Gasket 空压机齿轮盖垫片 4 VG2600010928 1 Front oil seal carrier 前油封座 5 VG1047010038 1 Front oil seal 前油封 6 VG1500010008A 1 Camshaft gear cover 凸轮轴齿轮盖 7 VG14010070 1 Gasket 凸轮轴齿轮盖垫片 8 190003813429 14 M8×22-8.8-ZN DIN939 Stud 双头螺柱 9 190003932023 17 B8-ZN DIN137 Wave spring washer 波形弹性垫圈 10 190003900085 4 Q5281220 Spring type Straight pin 弹性圆柱销 11 190003802576 1 M10×90-8.8-ZN DIN933 Hex head bolt 六角头螺栓 12 190003932024 1 B10-ZN DIN137 Wave spring washer 波形弹性垫圈 13 190003800571 1 M10×80-8.8-ZN DIN931 Hex head bolt 六角头螺栓 14 190003931122 10 B10-ZN DIN127 Spring lockwasher 弹簧垫圈 15 190011260039 6 M6×30-8.8-H.Y GB/T5782 Hex head bolt 六角头螺栓 16 190003862524 2 M10×20-8.8-ZN DIN912 Socket cap screw 内六角圆柱头螺钉 17 190003932025 2 A10-ZN DIN137 Saddle shaped spring washer 鞍形弹性垫圈 18 190003871252 17 M8-8-ZN DIN934M Hexagon nut 1型六角螺母 19 190003813443 1 M8×30-8.8-ZN DIN939 Stud 双头螺柱 20 190003962051 1 CM30×1.5-5.8 DIN7604 Screw plug 轻型六角头圆柱螺塞 21 190003901507 4 10m6×16 DIN7 Straight pin 圆柱销 22 190003802523 3 M10×25-8.8-ZNDIN933 Hex head bolt 六角头螺栓 23 190011620016 2 M12×45-8.8-ZN GB/T898 Stud 双头螺柱 190003813638 M12×35-8.8-ZN DIN939 Stud 双头螺柱 24 190003813628 6 M12×30-8.8-ZN DIN939 Stud 双头螺柱 25 190003888453 8 VM12-8-ZN DIN980 Self-locking nut 1型全金属六角锁紧螺母 26 190003813467 2 Q1200865F3 Stud 双头螺柱 27 VG9003080001 6 Sealing washer 复合密封垫圈 28 VG2600010934 1 Front oil seal carrier gasket 前油封座垫片 29 190003930271 2 A10.5-ST DIN125 Flat washer 平垫圈 30 190003802561 6 M10×75-8.8-ZN DIN933 Hex head bolt 六角头螺栓

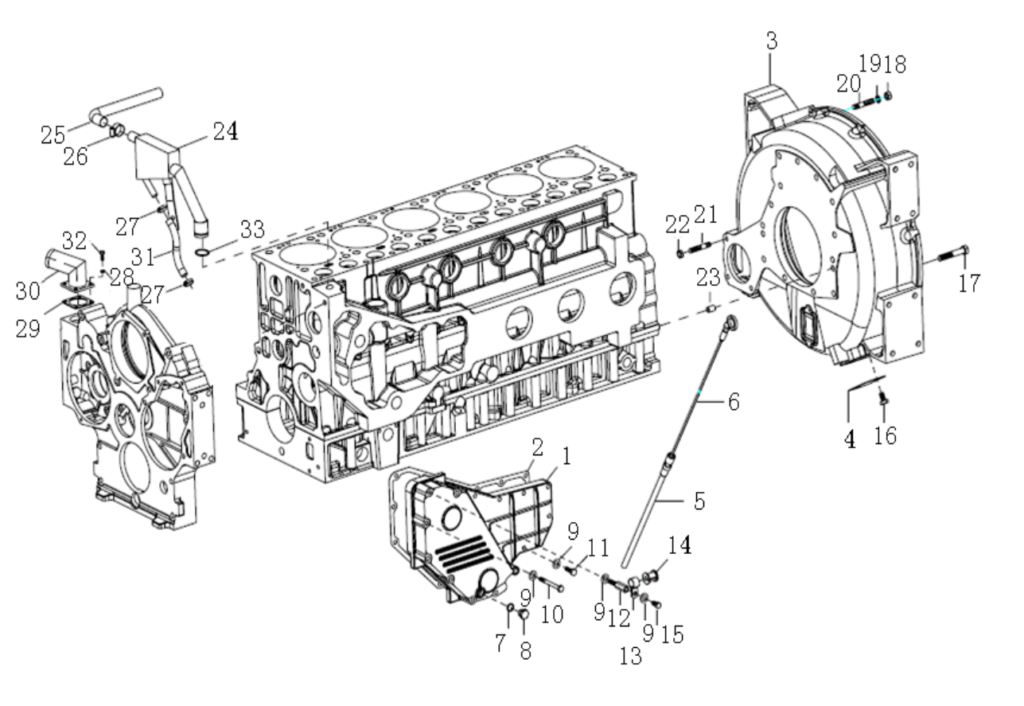

Cylinder block-3
Pos Number of part Quantity Standard sepcification Designation 名 称 1 VG1540010014A 1 Oil cooler cover 机油冷却器盖 2 VG1540010015A 1 Gasket 机油冷却器盖垫片 3 AZ1500010012 1 Flywheel housing 飞轮壳 4 VG1800210011 1 Observation hole cover 观察孔盖 5 VG2600010705 1 Lower oil dipstick subassembly 机油尺管下组件 6 VG1500010600 1 Upper oil dipstick subassembly 油尺管上组件总成 7 190003098014 1 Sealing washer 密封垫圈 8 190003962020 1 AM14×1.5-5.8 DIN7604 Screw plug 轻型六角头圆柱螺塞 9 190003932023 18 B8-ZN DIN137 Wave spring washer 波形弹性垫圈 10 190003800467 8 M8×75-8.8-ZN DIN931 Hex head bolt 六角头螺栓 11 190003802437 10 M8×35-8.8-A2C DIN933 Hex head bolt 六角头螺栓 12 VG1500010031 1 Bolt 螺栓 13 VG2600010647 1 Clamp 单管夹片 14 VG2600010638 1 Rubber pipe clamp 橡胶管箍 15 190003802411 1 M8×16-8.8-ZN DIN933 Hex head bolt 六角头螺栓 16 190003802511 2 M10×18-8.8-ZN DIN933 Hex head bolt 六角头螺栓 17 VG1500010062 7 Hex head bolt 飞轮壳螺栓 18 190003871305 12 M10-8-ZN DIN934m Hexagon nut 1型六角螺母 19 190003931122 12 B10-ZN DIN127 Spring lockwasher 弹簧垫圈 20 190003813537 10 M10×35-8.8-ZN DIN939 Stud 双头螺柱 190003813544 2 M10×45-8.8-ZN DIN939 Stud 双头螺柱 21 190003813527 3 M10×28-8.8-ZN DIN939 Stud 双头螺柱 22 190003888452 3 VM10-8-ZN DIN980 Self-locking nut 2型全金属六角锁紧螺母 23 190003901604 2 12m6×20 DIN7 Straight pin 圆柱销 24 VG1500019045B 1 Oil separator 油气分离器组件 25 VG12G00040038 1 Hose 带纤维夹层橡胶软管 26 190003989301 1 25/35 N05074 Hose clamp 软管卡箍 27 190003989336 2 16/25-ZN N05074 Hose clamp 软管卡箍 28 VG2600011106 1 Hose 无纤维夹层橡胶软管 29 VG14010086 1 Oil filler gasket 加油短管垫片 30 VG1560010028 1 Oil filler 加油短管组件 31 190003931082 4 B6 DIN127 Spring lockwasher 轻型弹簧垫圈 32 190003802321 4 M6×16-8.8-ZN DIN933 Hex head bolt 六角头螺栓 33 Q734B2650265 1 Sealing ring O型橡胶密封圈

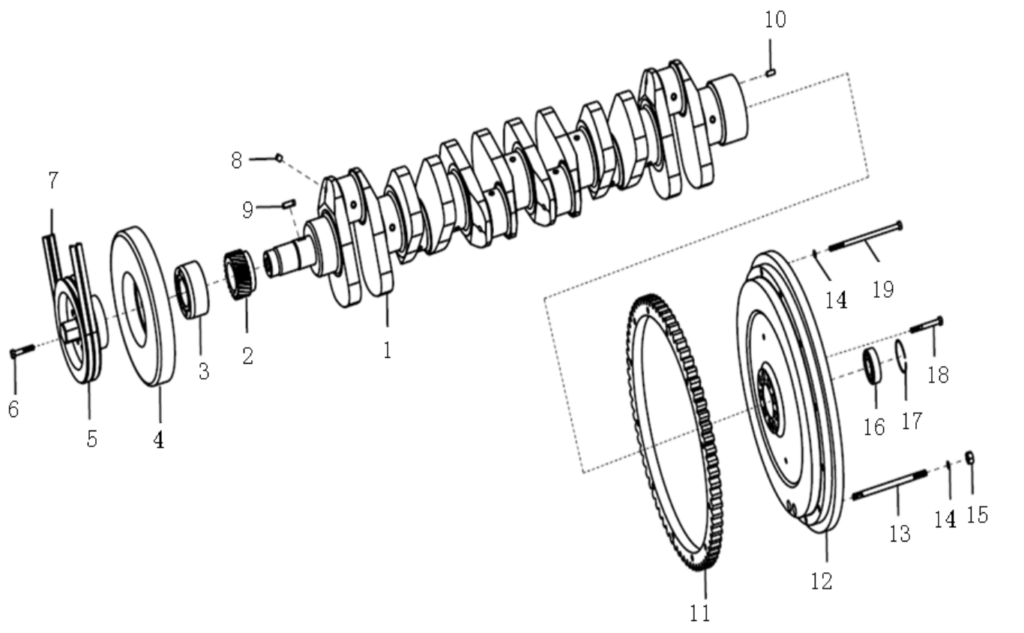

HOWO Crankshaft and flywheel
Pos Number of part Quantity Standard sepcification Designation 名 称 – 161560020029 1 Crankshaft assembly 曲轴总成 1 161560020024 1 Crankshaft 曲轴 2 VG14020038 1 Crankshaft gear 曲轴齿轮 3 VG1500020070 1 Flange 法兰 4 VG1560020010 1 Vibration damper 减振器 5 VG1560020020 1 Belt pulley 皮带轮 6 190003802558 8 M10×70 DIN933 Hex head bolt 六角头螺栓 7 VG2600020253 1 V-belt 汽车多楔带 8 190003901504 6 10h8×10 DIN7 Straight pin 圆柱销 9 190003960569 1 A8×7×28 DIN6885 Straight key 普通平键 10 190003901418 1 8m6×18 DIN7 Straight pin 圆柱销 11 VG2600020208 1 Starter ring gear 飞轮齿圈 12 AZ1500020220A 1 Flywheel 飞轮 13 190003813571 2 M10×90-8.8-Zn DIN939 Stud 双头螺柱 14 190003932024 12 B10-Zn DIN137 Wave spring washer 波形弹性垫片 15 190003871305 2 M10-8.8-ZN DIN934M Hexagon nut 1型六角螺母 16 190003311416 1 6305-2RS DIN625 Ball bearing 球轴承 17 190003934310 1 62×2 DIN472 Retaining ring 孔用弹性挡圈 18 VG1500020046 9 Hex head bolt 六角头螺栓 19 190003800579 10 M10×85-8.8-ZN DIN931 Hex head bolt 六角头螺栓

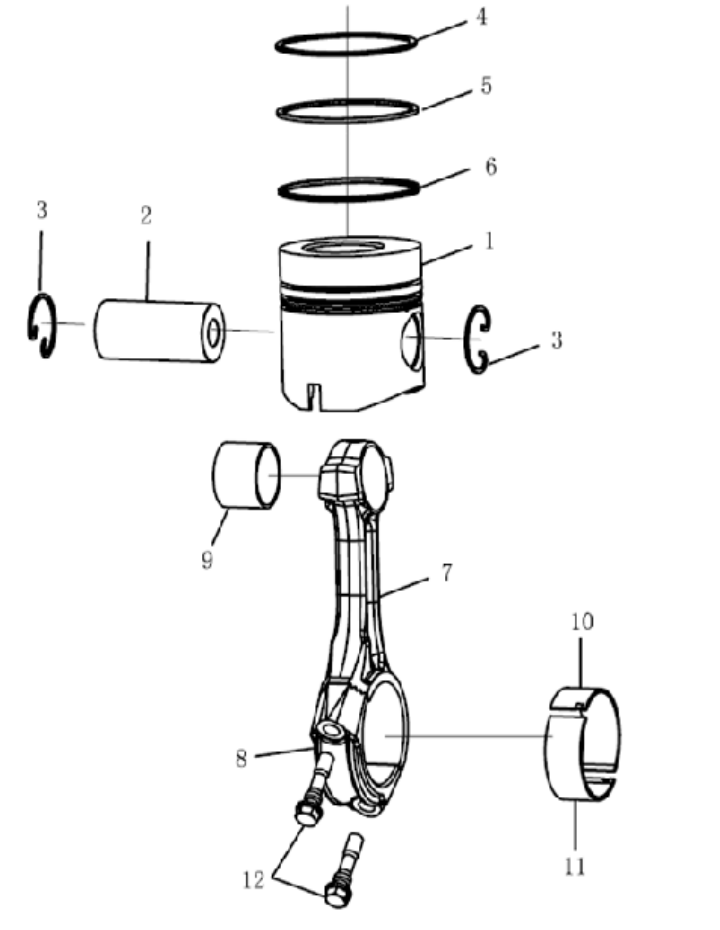

HOWO Piston and connecting rod
Pos Number of part Quantity Standard sepcification Designation 名 称 1 VG1560037011 6 Piston 活塞 2 VG1560030013 6 Piston pin 活塞销 3 VG1560030012 12 Retaining ring 活塞销挡圈 4 VG1540030007 6 VG1560030050 Keystone-type piston ring 梯形环 5 VG1540030006 6 Taper-face piston ring 锥面环 6 VG1560030045 6 Spring-backed oil piston ring 油环 – 161500030009 6 Connecting rod assembly 连杆总成 7 161500030008 6 Connecting rod 连杆体 8 161500030022 6 Connecting rod cover 连杆盖 9 VG1500030077 6 Connecting rod bush 连杆衬套 10 VG1560037034 6 Sleeve bearing 连杆轴瓦（上瓦） 11 VG1560037033 6 Sleeve bearing 连杆轴瓦（下瓦） 12 VG1500030023 12 Connecting rod bolt 连杆螺栓
HOWO Cylinder head
Pos Number of part Quantity Standard sepcification Designation 名 称 – 161560040058 6 Cylinder head assembly 气缸盖分总成 1 61560040040A 6 Cylinder head 气缸盖 2 VG1560040057 6 Intake valve seat 进气门座 3 VG1560040037 6 Exhaust valve seat 排气门座 4 VG1560040031 12 Valve guide 气门导管 5 VG1406060010 6 Sealing ring 环状密封圈 6 VG1560040049 6 Nozzle holder insert 喷油器衬套 7 190003989294 24 30/8-MS N05564 Core hole plug 碗形塞 8 190003989277 6 12/8-MS N05564 Core hole plug 碗形塞 9 190003989721 6 22/8-MS N05564 Core hole plug 碗形塞 10 190003989725 6 25/8-MS N05564 Core hole plug 碗形塞 11 VG1500040049 6 Cylinder head gasket 气缸盖衬垫 12 VG14040065 6 Cylinder head cover 气缸盖罩 13 VG14040021 6 Cylinder head cover gasket 气缸盖罩衬垫 14 VG1500040104 1 Water drain pipe 出水管 15 VG1500060045 1 Pipe connection assembly 管接头组件 16 VG1500040105 1 pipe 出水管接管 17 VG1200040027 2 Cylinder head clamp 夹紧块 18 VG1200040034 7 Collar nut 带肩螺母 19 VG1500040106 1 Gasket 出水管垫片 20 VG1200040023A 5 Cylinder head clamp 夹紧块 21 VG1560040032 12 Valve guide bush 气门阀杆密封套 22 VG1500040023 24 Cylinder head bolt 气缸盖主螺栓 23 190003800466 24 M8×60-8.8-ZN DIN933 Hex head bolt 六角头螺栓 24 190003932023 36 B8-ZN DIN137 Wave spring washer 波形弹性垫圈 25 Q1200825 2 M8×25-8.8-Zn.D-DIN939 Stud 双头螺柱 26 190003871252 12 M8-8-Zn.D DIN934m Hexagon nut 1型六角螺母 27 190014040007 4 8GB/T97.1-140HV-Zn.D Wash 平垫圈 28 190003802432 4 M8×30-8.8-Zn.D DIN933 Hex head bolt 六角头螺栓 29 Q1200870 2 M8×25-8.8-Zn.D-DIN939 Stud 双头螺柱

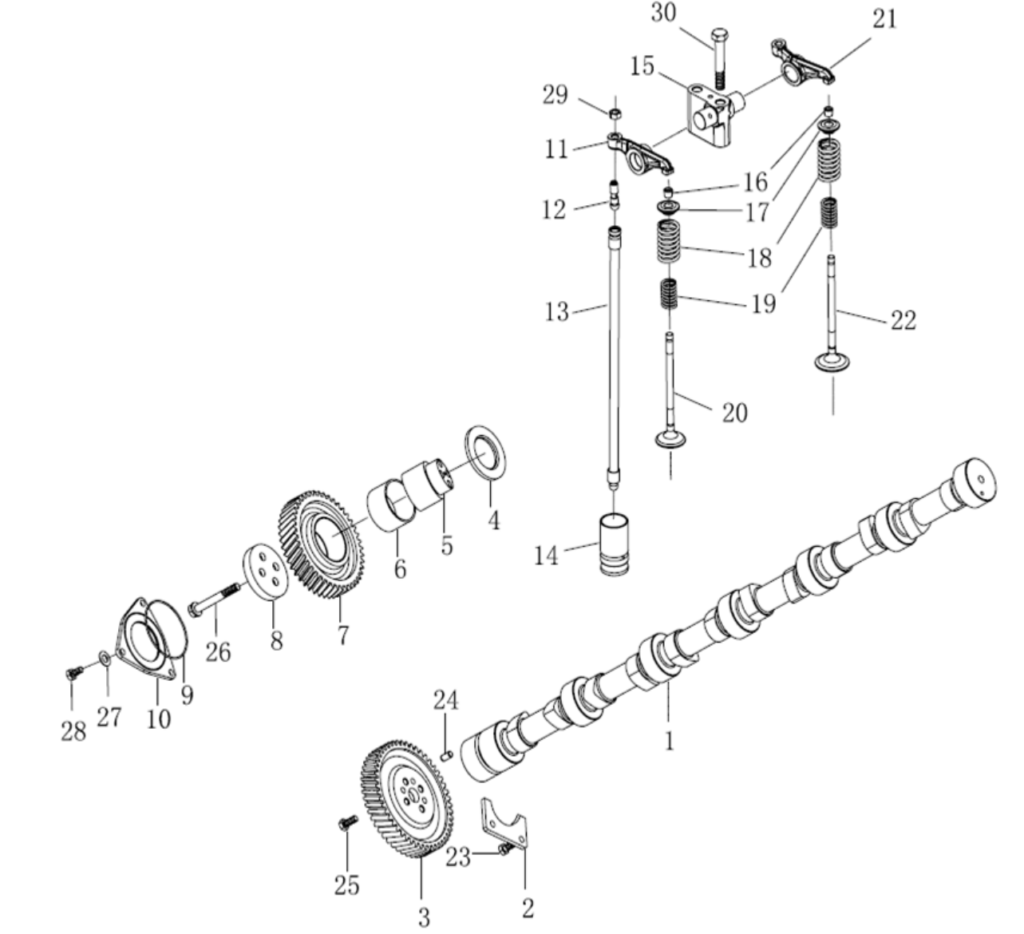

HOWO engine Valve train
Pos Number of part Quantity Standard sepcification Designation 名 称 1 VG1500050096 1 Camshaft 凸轮轴 2 VG14050133 1 Thrust flange 凸轮轴止推片 3 VG14050053 1 Camshaft gear 凸轮轴正时齿轮 4 VG1540059032 1 Intermediate gear Joint 中间齿轮垫片 5 VG1540059031 1 Idle gear axle 中间齿轮轴 6 VG1560050051 1 Holder 衬套 7 VG1560050053 1 Idle gear 中间齿轮总成 8 VG1560050045 1 Guard plate 挡板 9 190003120602 1 Sealing ring 密封圈 10 VG1560050046A 1 Cover 盖板 11 VG14050049 6 Rocker arm (exhaust) 排气门摇臂 12 VG14050010 12 Valve setting screw 气门间隙调整螺钉 13 VG1500050070 12 Push rod 气门推杆总成 14 VG1500050032 12 Valve tappet 气门挺柱 15 VG14050119 6 Rocker arm support 气门摇臂座 16 VG1500050025 24 Valve cone 气门锁夹 17 VG1500050109 12 Spring cup 气门弹簧上座 18 VG1500050002 12 Outer valve spring 气门外弹簧 19 VG1500050001 12 Inner valve spring 气门内弹簧 20 VG1560050041 6 Exhaust valve 排气门 21 VG14050048 6 Rocker arm (intake) 进气门摇臂 22 VG1560051001 6 Intake valve 进气门 23 190003802399 2 M8×16-10.9 DIN933 Hex head bolt 六角头螺栓 24 190003901409 1 8m6×12 DIN7 Straight pin 圆柱销 25 190003802443 4 M8×20-10.9-ZN DIN933 Hex head bolt 六角头螺栓 26 VG1560050059 4 Hex head bolt 六角头螺栓 27 190003932023 3 B8-ZN DIN137 Wave spring washer 波形弹性垫圈 28 190003862419 1 M8×16-8.8-ZN DIN912 Socket cap screw 内六角圆柱头螺钉 29 VG2130050065 12 Hexagon nut 气门间隙调整螺母 30 190003802655 12 M12×60-10.9-ZN DIN933 Hex head bolt 六角头螺栓

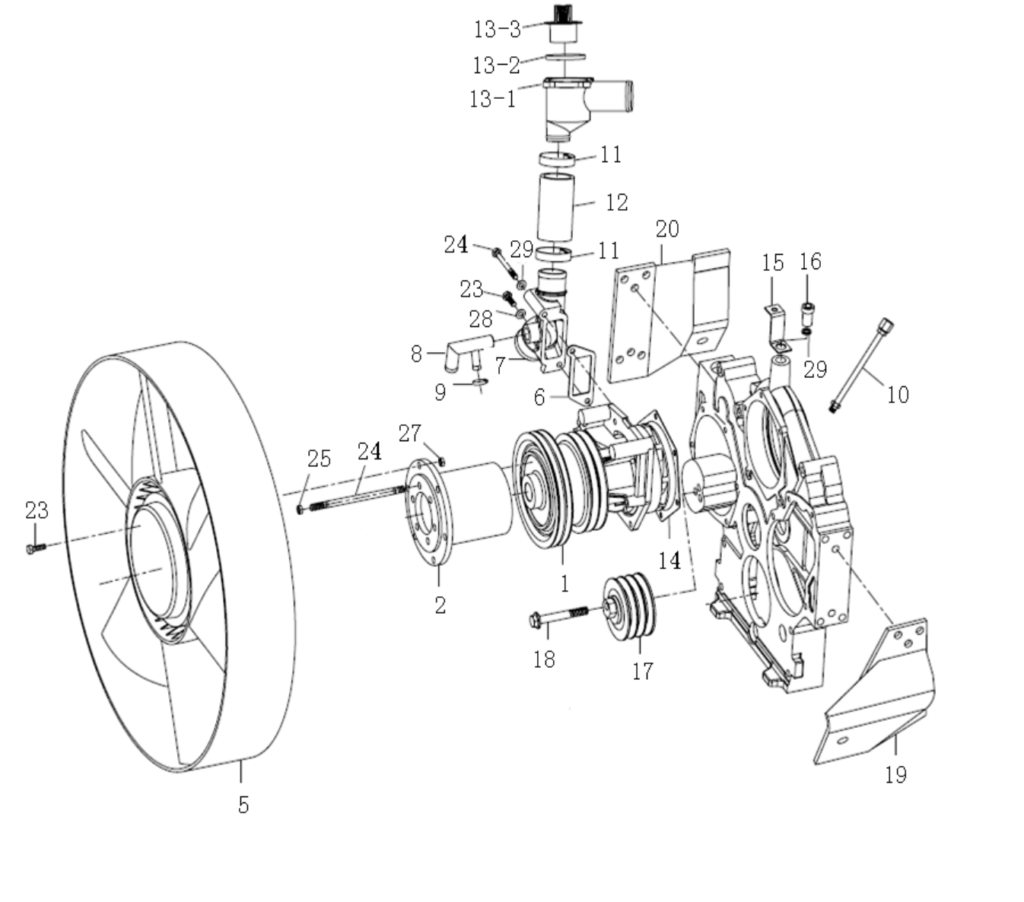

HOWO engine Cooling System
Pos Number of part Quantity Standard sepcification Designation 名 称 1 VG1500060051 1 Water pump assembly 水泵总成 2 VG1500060240 1 Flange 中间法兰 5 VG2600060446 1 Viscous fan Φ640环形风扇 6 VG14060024 1 Gasket 水管接头垫片 7 VG1560060023 1 Intake nozzle 水管接头 8 VG1560060004 1 Pipe connector 管接头组件 9 190003989336 2 16/22-ZN N05074 Hose clamp 软管卡箍 10 VG2600060456 1 Water pump seal assembly 水泵加黄油装置 11 190003989308 2 44/60 N05074 Hose clamp 软管卡箍 12 VG61000060276 1 Hose 胶管 13 VG1047060005 1 Thermostat 节温器总成 13-1 VG1500061203 1 Thermostat body 节温器壳体 13-2 VG1047060004 1 Water seal 水封圈 13-3 VG1047060003 1 Thermostat core 调温器芯（71度） 14 VG140608 1 Gasket 水泵密封垫 15 VG1500060001 1 Support 支架板 16 Q218B1625 1 Socket cap screw 内六角圆柱头螺钉 17 VG2600060313 1 Tensioning roller assembly 张紧轮总成 18 190011400001 1 Q1861290TF2 Flange bolt 六角法兰面螺栓 19 VG1095060006 1 Mounting bracket l. 左支架总成 20 VG1095060009 1 Mounting bracket r. 右支架总成 23 190003802424 7 M8×25-8.8-ZN DIN933 Hex head bolt 六角头螺栓 24 190003813148 1 M8×75-8.8-ZN DIN931 Hex head bolt 双头螺柱 25 190003888452 6 VM10-8-ZN DIN980 Self-locking nut 2型全金属六角锁紧螺母 27 190003888451 6 VM8-8-ZN DIN980 Self-locking nut 2型全金属六角锁紧螺母 28 190003932023 2 B8-ZN DIN137 Wave spring washer 波形弹性垫圈 29 190003931182 1 B16-ZN DIN127 Spring lockwasher 弹簧垫圈

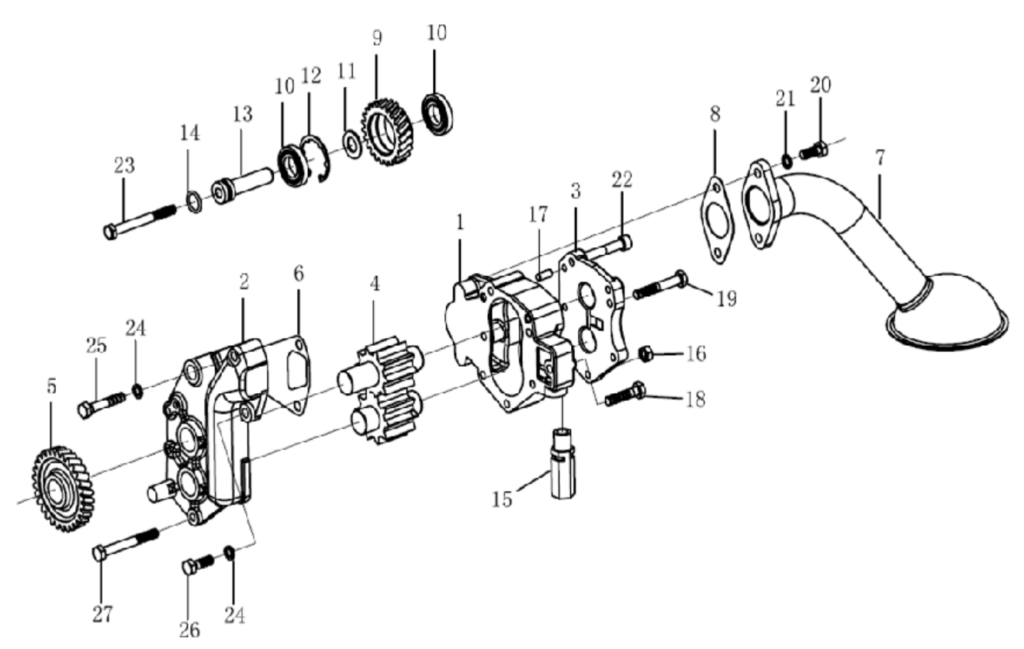

HOWO engine Oil pump
Pos Number of part Quantity Standard sepcification Designation 名 称 – VG1500070021 1 Oil pump assembly 机油泵总成 1 VG1500070015 1 Housing 机油泵壳体 2 VG1500070029 1 Front cover 机油泵前盖 3 VG1500070024 1 Rear cover 机油泵后盖 4 VG1500070020 1 Gear 机油泵齿轮总成 5 VG14070060 1 Gear 机油泵驱动齿轮 6 VG14070055 1 Gasket 机油泵垫片 7 VG1800070051 1 Oil strainer assembly 集滤器总成 8 VG140778 1 Gasket 垫片 9 VG14070061 1 Idle gear 机油泵中间齿轮 10 190003311410 2 6303 DIN625 Ball bearing 向心球轴承 11 VG14070049 1 Spacer ring 中间隔圈 12 190003934732 1 47×1.75 DIN984 Retaining ring 带凸齿的孔用挡圈 13 VG14070056 1 Axle 中间齿轮轴 14 VG14070155 1 Sealing ring 密封圈 15 VG1560070099 1 Discharging valve assembly 机油泵限压阀总成 16 190003871303 1 M10-8-ZN DIN934 Hexagon nut 1型六角螺母 17 190003901420 4 10m6×20 DIN007 Straight pin 圆柱销 18 190003800530 1 M10×45 DIN931 Hex head bolt 六角头螺栓 19 190003800566 4 M10×75-8.8-ZN DIN931 Hex head bolt 六角头螺栓 20 190003802523 2 M10×25-8.8-ZN DIN933 Hex head bolt 六角头螺栓 21 190003932025 2 A10-ZN DIN137 Saddle shaped spring washer 鞍形弹性垫圈 22 Q218B1070 1 M10×70 DIN931 Hex head bolt 内六角圆柱头螺钉 23 190003802578 1 M10×95-10.9-ZN DIN933 Hex head bolt 六角头螺栓 24 190003931122 2 B10-ZN DIN127 Spring lockwasher 弹簧垫圈 25 190003800551 1 M10×55 -8.8-ZN DIN931 Hex head bolt 六角头螺栓 26 190003802527 1 M10×30 DIN933 Hex head bolt 六角头螺栓 27 190003800579 1 M10×85-8.8-ZN DIN931 Hex head bolt 六角头螺栓

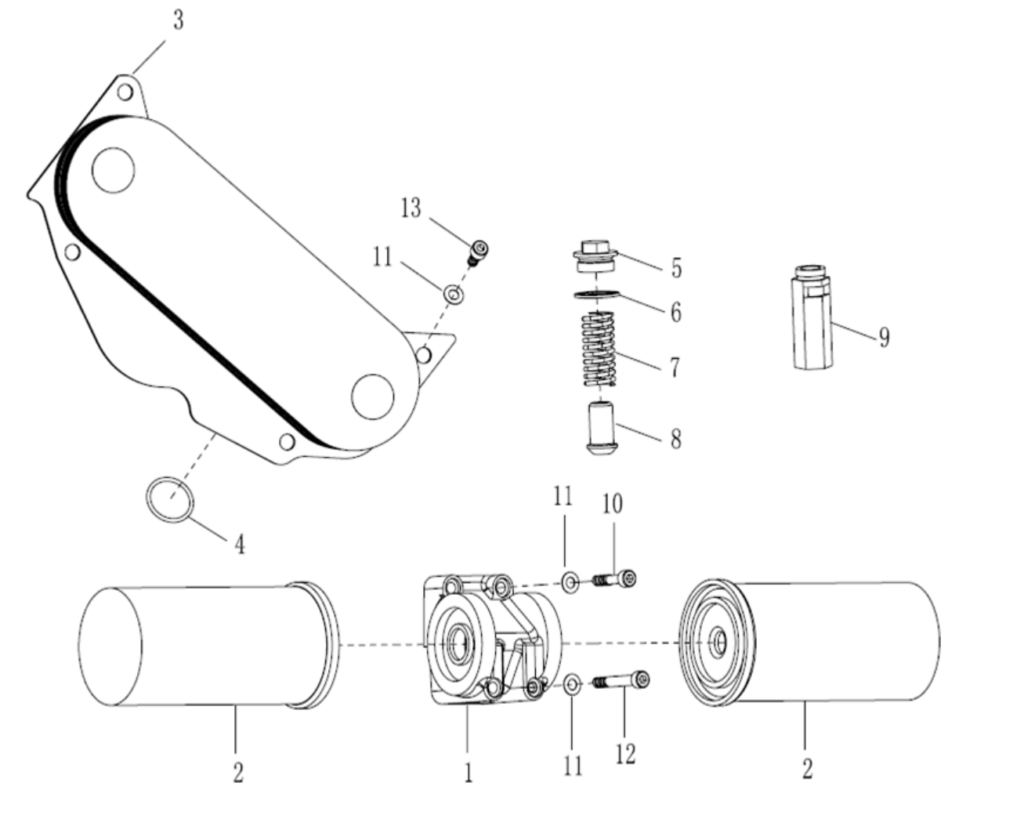

HOWO engine Oil filter
Pos Number of part Quantity Standard sepcification Designation 名 称 1 VG1500070051 1 Oil filter body 机油滤清器底座组件 2 VG61000070005 2 Oil filter 旋转式机油滤芯总成 3 VG1500010334 1 Oil cooler 机油冷却器（8片） 4 VG1400010032 2 Sealing ring 密封圈 5 190003962051 1 M30×1.5-A3C DIN7604 Screw plug 轻型六角头圆柱螺塞 6 VG2600010735 1 Sealing ring 复合垫圈 7 VG14070068 1 Valve spring 安全阀弹簧 8 VG14070069 1 Valve cone 安全阀 9 VG1500070097 1 Discharging valve assembly 主油道限压阀总成 10 190003862443 2 M8×40-8.8-ZN DIN912 Socket cap screw 内六角圆柱头螺钉 11 190003932023 8 B8-ZN DIN137 Wave spring washer 波形弹性垫圈 12 190003862482 2 M8×90- 8.8-ZN DIN912 Socket cap screw 内六角圆柱头螺钉 13 190003862419 4 M8×16-8.8-ZN DIN912 Socket cap screw 内六角圆柱头螺钉

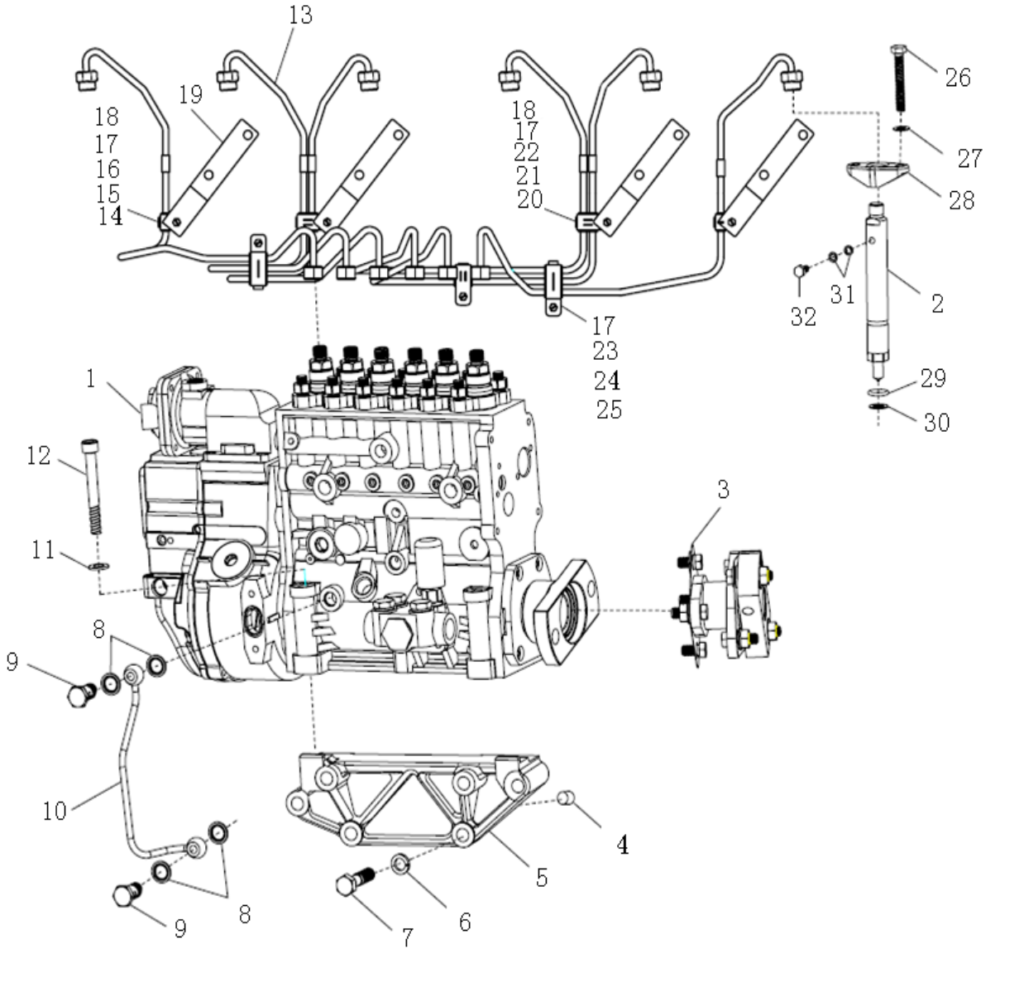

HOWO engine Fule system
Pos Number of part Quantity Standard sepcification Designation 名 称 1 VG1560080023 1 Injection pump 国产喷油泵带K型调速器 2 VG1560080276 6 Fuel injector 喷油器总成 3 VG1560080300 1 Coupling 联轴器总成 4 190003901600 2 12m6×16 DIN7 Straight pin 圆柱销 5 VG1500080174 1 Bracket 波许喷油泵托架 6 190003931142 6 B12 DIN127C Spring lockwasher 弹簧垫圈 7 Q150B1245 2 Hex head bolt 六角头螺栓 Q150B1285 1 Hex head bolt 六角头螺栓 Q150B1295 3 Hex head bolt 六角头螺栓 8 VG2600080200 4 Sealing washer 密封垫圈 9 190003962621 2 A8-6S-ZN DIN7623 Hollow bolt 空心螺栓 10 VG1560070025 1 Oil return pipe 润滑油回油管总成 11 190003930271 4 A10.5-ST-ZN DIN125 Flat washer 平垫圈 12 190003862566 4 M10×80-8.8-ZN DIN912 Socket cap screw 内六角圆柱头螺钉 13 VG1560080278A 1 Injection pipe 高压油管组 14 VG1540080057 2 Upper clamp for one pipe 单管管夹上片组件 15 VG1550089012 2 Gasket of one-pipe clamp 单管管夹衬垫 16 VG1560080178 2 Lower clamp for one pipe 单管管夹下片 17 190003802321 7 M6×16-8.8-ZN DIN933 Hex head bolt 六角头螺栓 18 Q40306 4 Spring lockwasher 弹簧垫圈 19 VG1560080172 4 Support plate 支撑架 20 VG1500080202 3 Upper clamp for two pipes 双管管夹上片组件 21 VG1500080216 3 Gasket of two-pipe clamp 双管管夹衬垫 22 VG1500080217 3 Lower clamp for two pipes 双管管夹下片 23 VG1500080201 2 Upper clamp for three pipes 三管管夹上片组件 24 VG1500080212 2 Gasket of three-pipe clamp 三管管夹衬垫 25 VG1500080213 2 Lower clamp for three pipes 三管管夹下片 26 VG2600080383 12 Hex head bolt 六角头螺栓 27 190003932023 8 B8-ZN DIN137 Wave spring washer 波形弹性垫圈 28 VG1500080094A 6 Pressure clip 紧固压板 29 VG609070080 6 Sealing ring 密封垫圈 30 VG14080082 6 Washer 垫圈 31 VG9003080001 12 Sealing washer 复合密封垫圈 32 VG1500080090 6 Hollow bolt 空心螺栓 33 VG1560080011 1 Fuel filter 旋装式燃油精滤器总成 VG1560080012 1 Fuel filter Element 旋装式燃油精滤器 34 VG1560080016 1 Fuel filter 旋装式燃油粗滤器总成 VG1540080311 1 Fuel filter Element 旋装式燃油粗滤器 VG1047080009 1 Fuel filter cup 燃油粗滤器水杯 36 VG1092080017 1 Fuel line 燃油管 37 VG1092080018 1 Fuel line 燃油管 38 VG1092080019 1 Fuel line 燃油管
HOWO Engine Electrical system
Pos Number of part Quantity Standard sepcification Designation 名 称 1 VG1560090001 1 Starter motor 减速型起动机 2 VG1500090027 1 Tension block 拉紧块 3 VG1500090066 1 V-belt 发电机多楔带 4 VG581C160018 2 Bush 轴套 5 VG1560090012 1 Alternator 1540W交流发电机 6 VG1500130027 1 Spacer block 间隔块 7 190003935125 2 11-ZN DIN1441 Flat washer 平垫圈 8 190003802558 1 M10×70-10.9 DIN933 Hex head bolt 六角头螺栓 9 190003932025 2 A10-ZN DIN137 Saddle shaped spring washer 鞍形弹性垫圈 10 190003871305 1 M10-8.8-ZN DIN934 Hexagon nut 1型六角螺母 11 VG1500090039 1 Tension bolt 拉紧螺栓 12 VG1500090026 1 Tension bolt 拉紧螺栓 13 VG1092090311 1 Oil pressure sensor 压力传感器 14 VG1500090061 1 Water temperature sensor 水温表传感器 15 VG1500130018A 1 Bracket 托架 16 VG2600080275 1 Sealing washer 复合密封垫圈 17 VG9003080005 1 Sealing washer 复合密封垫圈 18 190003800568 1 Q150B10100 Hex head bolt 六角头螺栓 19 VG1500130019 1 Bush 衬套 20 190003888452 1 VM10-8-ZN DIN980 Self-locking nut 2型全金属六角锁紧螺母 21 190003802527 1 M10×30-8.8-ZN DIN933 Hex head bolt 六角头螺栓 22 190003930271 1 A10.5-ST DIN125 Flat washer 平垫圈 23 190003800568 1 Q150B10100 Hex head bolt 六角头螺栓 24 190003888452 1 VM10-8-Zn DIN980 Self-locking nut 2型全金属六角锁紧螺母 25 190003802424 2 M8×25-8.8-ZN DIN933 Hex head bolt 六角头螺栓 26 190003932023 2 B8-ZN DIN137 Wave spring washer 波形弹性垫圈 27 190003932309 2 8.4-STZN DIN433 Flat washer 小垫圈 28 190012630006 2 M14-ZN GB/T6170 Hexagon nut 1型六角螺母 29 190003935015 2 Q40114 Flat washer 平垫圈 30 190003931162 1 Q40314 Spring lockwasher 弹簧垫圈 31 190003802432 1 M8×30-8.8-ZN DIN933 Hex head bolt 六角头螺栓 32 190003800575 1 Q150B10130 Hex head bolt 六角头螺栓 33 190014040007 1 8-140HV-ZN GB/T97.1 Flat washer 平垫圈 34 190014070002 1 10-140HV-ZN GB/T848 Washer 小垫圈

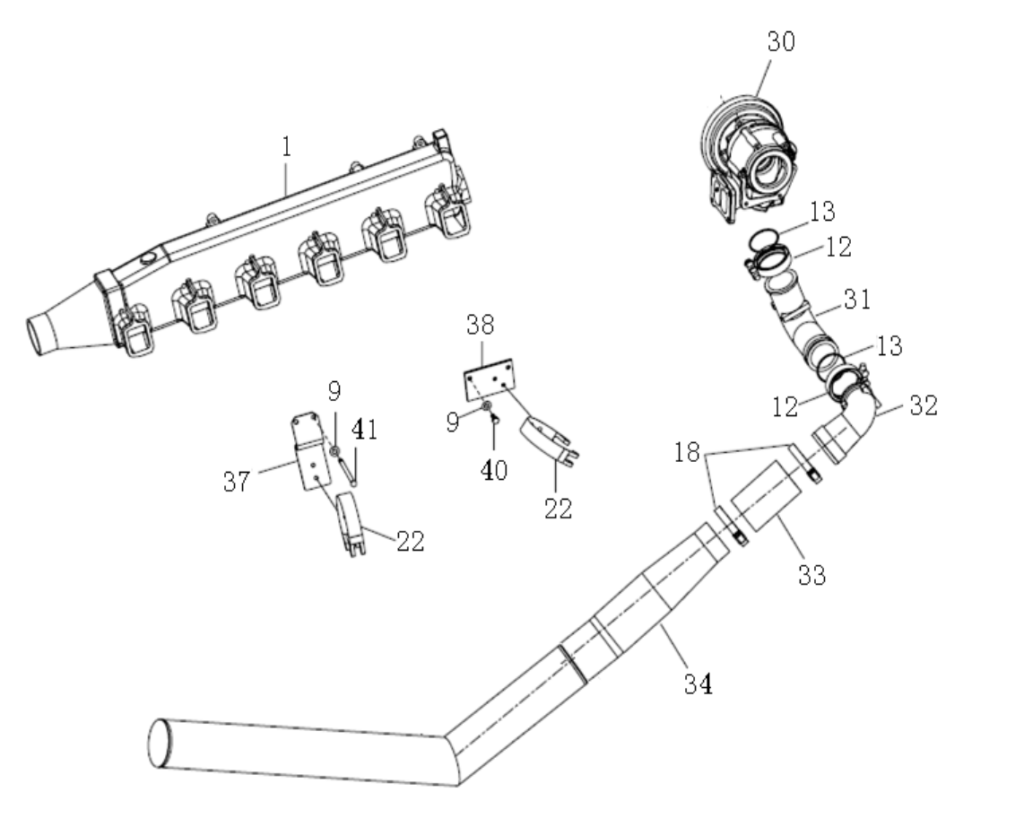

HOWO engine Intake system
Pos Number of part Quantity Standard sepcification Designation 名 称 1 VG2600110812 1 Intake manifold 进气管总成 2 190003962014 1 AM-10×1-ST-A3C DIN7604 Screw plug 六角头螺塞 3 VG9003080003 1 Sealing washer 复合密封垫圈 4 VG1500110024 6 Gasket 进气管垫片 5 190003800465 6 M8×80 DIN931 Hex head bolt 六角头螺栓 6 190003962621 1 A8-6S-ZN DIN7623 Hollow bolt 空心螺栓 7 VG14110064 4 Bolt 进气管紧固螺栓 8 190003800497 2 M8×160-8.8-ZN DIN931 Hex head bolt 六角头螺栓 9 190003932023 22 B8-ZN DIN137 Wave spring washer 波形弹性垫圈 11 VG1560110165 Elbow connector 连接弯管 12 VG1560110226 2 Clamp 夹子 13 VG190320035 2 Sealing ring 密封圈 18 190003989312 2 70/89 N05074 Hose clamp 软管卡箍 20 VG609E110036 2 Adjusting washer 调整垫圈 21 190003802411 6 M8×16-8.8-ZN DIN933 Hex head bolt 六角头螺栓 22 VG1560110021 2 Tension strap 卡箍带 23 VG209190017 2 Clamping pin 拉紧销 24 VG1700550013 2 Clamping pin 张紧销 25 190003862462 2 M8×60-8.8-ZN DIN912 Socket cap screw 内六角圆柱头螺钉 27 VG9100570015 1 Suspension bracket 悬臂总成 29 VG9003080008 2 Sealing washer 复合密封垫圈 30 VG1560118229 1 Turbocharger 废气涡轮增压器 31 VG2600111078 1 Elbow connector 连接弯管 32 VG1800110045 1 Elbow connector 进气接管 33 VG2600111086 1 Hose 橡胶管 34 VG1047110104 1 Pipe 中冷进气管 37 VG1047110105 1 Mounting plate 固定板 38 VG1540110209 1 Mounting plate 固定板 40 190003802415 2 M8×18-8.8-ZN DIN933 Hex head bolt 六角头螺栓 41 Q150B0818 2 Hex head bolt 六角头螺栓

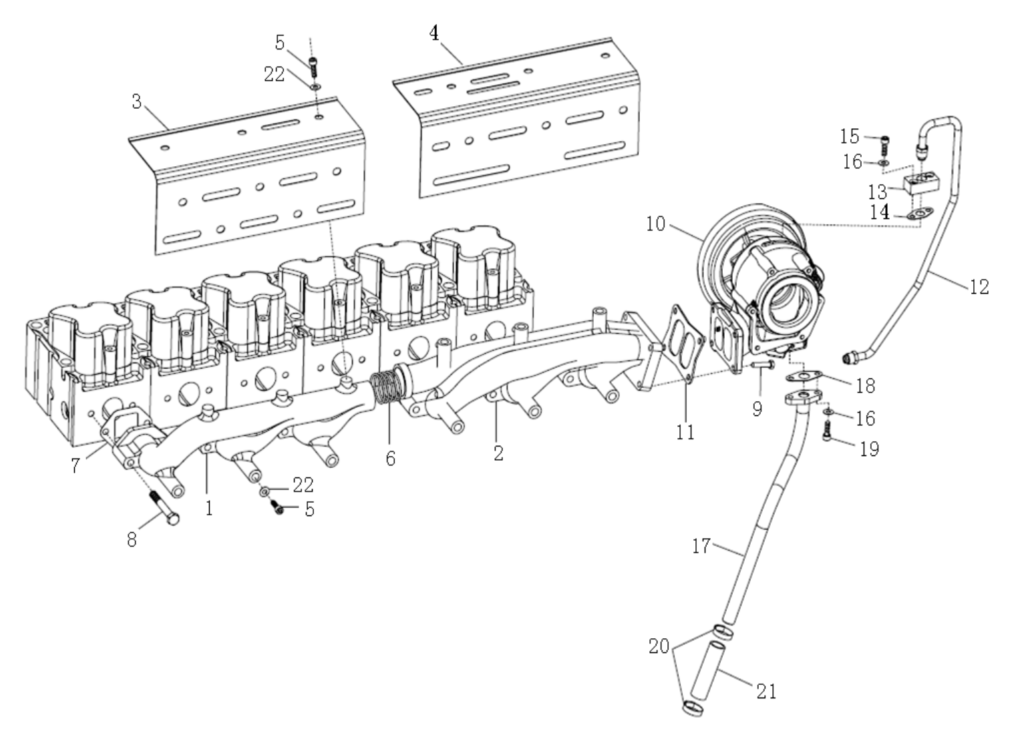

HOWO engine Exhaust system
Pos Number of part Quantity Standard sepcification Designation 名 称 1 VG2600111137 1 Exhaust manifold (front) 前排气歧管 2 VG2600111136 1 Exhaust manifold (rear) 后排气歧管 3 VG2600111142 1 Heat insulation cover (front) 前隔热罩 4 VG2600111143 1 Heat insulation cover (rear) 后隔热罩 5 VG1500110963 12 Heat-resistant bolt 耐热螺栓 6 VG260110162 4 Laminated sealing ring 排气管密封环 7 VG1560110111 6 Gasket 排气管垫片 8 VG2600111052 12 Bolt 排气管固定螺栓 9 VG1560110241 4 Hex head bolt 六角头螺栓 10 VG1560118229 1 Turbocharger 废气涡轮增压器 11 VG1560110210 1 Gasket 增压器密封垫 12 VG1092110024 1 Oil supply pipe 增压器进油管 13 VG1560110152 1 Two bolt flange 进油管法兰 14 VG609E110050 1 Gasket 进油管垫片 15 190003862428 2 M8×25-8.8-ZN DIN912 Socket cap screw 内六角圆柱头螺钉 16 VG188250083 4 Lockwasher 自锁垫圈 17 VG1560079003 1 Oil return pipe 回油管总成 18 VG2600110048 1 Gasket 回油管法兰垫片 19 VG1460070014 2 Bolt 回油管螺栓 20 190003989340 2 22/29-ZN N05074 Hose clamp 软管卡箍 21 VG2600070071 1 Hose 增压器回油用软管 22 190003937282 12 Q40208 Washer 大垫圈

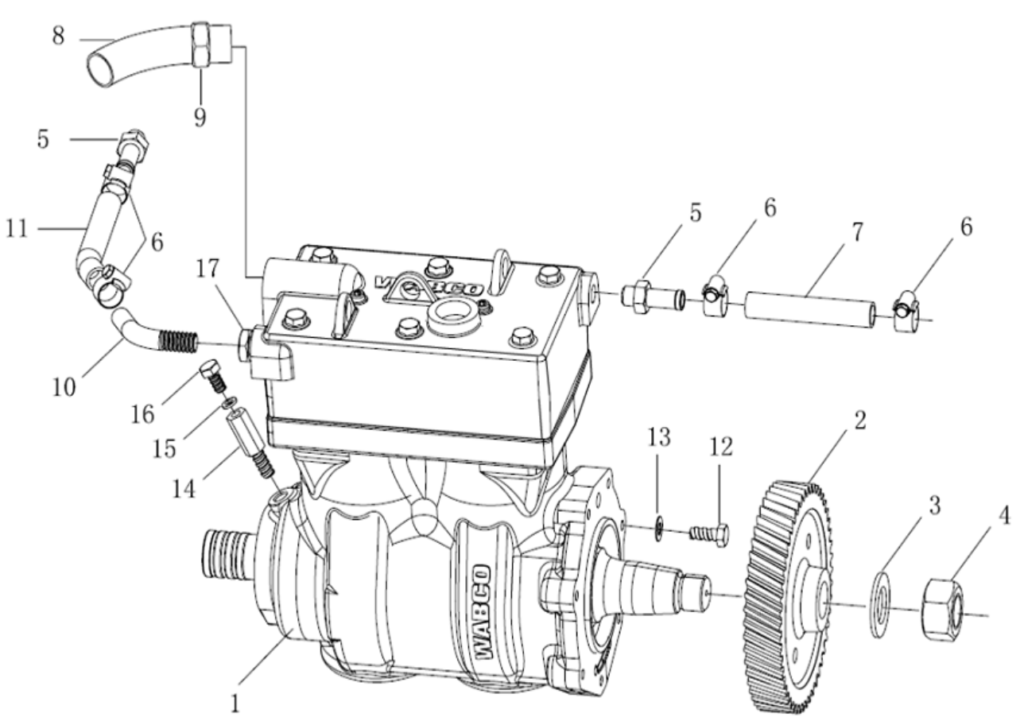

HOWO engine Air compressor assembly
Pos Number of part Quantity Standard sepcification Designation 名 称 1 VG1560130080 1 Air compressor assembly 双缸空压机总成 2 VG1560130064 1 Injection pump gear 喷油泵齿轮 3 VG409020045 1 Washer 垫片 4 VG2600130045 1 Hexagon nut 六角螺母 5 VG1560060012 2 Water pipe connector 空压机水管接头 6 190003989336 4 16/22-ZN N05074 Hose clamp 软管卡箍 7 VG1560060018 1 Hose 空压机出水管 8 VG1560130035 1 Intake pipe connector 空压机进气管接头 9 190003559778 1 Nut 六角螺母 10 VG1560060012 1 Water inlet connector 空压机进水管接头 11 VG1560060019 1 Hose 空压机进水管 12 190003802419 7 Bolt 六角头螺栓 13 190003932023 7 B8-ZN DIN137 Wave spring washer 波形弹性垫圈 14 VG1560070051 2 Transition joint 过渡接头 15 19003080003 7 Washer 复合密封垫圈 16 VG2600130053 1 Bolt 空心螺栓 17 Q351B14 1 Nut 六角薄螺母

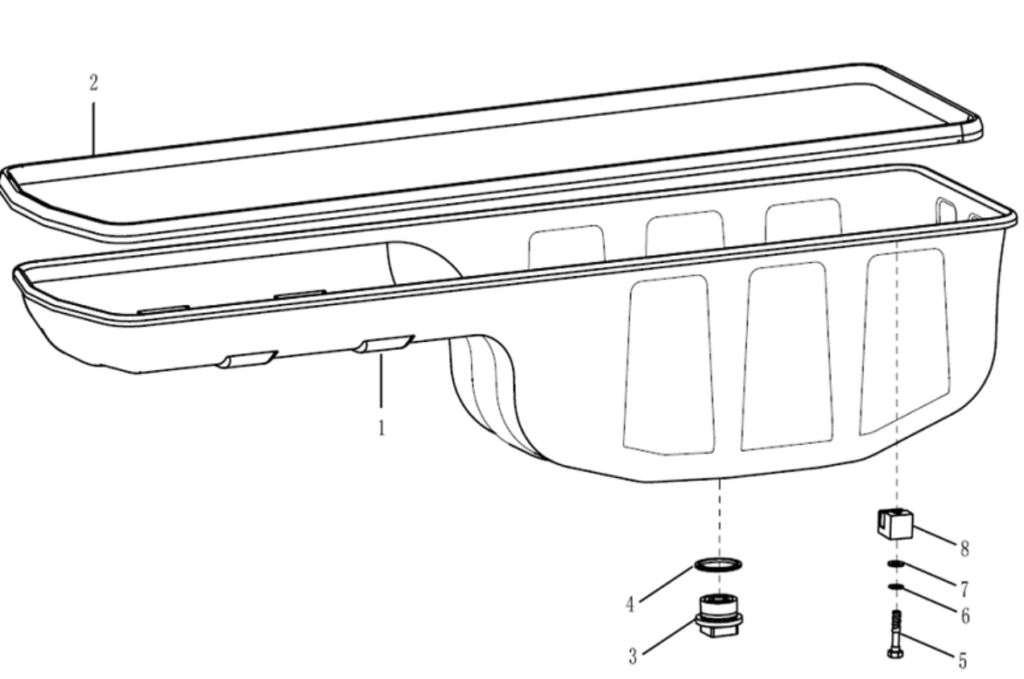

HOWO engine Oil sump assembly
Pos Number of part Quantity Standard sepcification Designation 名 称 1 VG1800150015A 1 Oil sump assembly 油底壳总成 2 VG2600150106 1 Seal 密封垫 3 VG2600150108 1 Magnetic screw plug 磁性螺塞总成 4 VG2600150106 1 Sealing washer 密封垫圈 5 190003802442 12 M8×40-8.8-ZN DIN933 Hex head bolt 六角头螺栓 6 190003932023 12 B8-ZN DIN137 Wave spring washer 波形弹性垫圈 7 190003930261 12 A8.4-ST-ZN DIN125 Flat washer 平垫圈 8 VG14150046 12 Retainer 油底壳托块
